Funnel base pallet box GEO box - 1000 x 600 mm - 180 liter - with slide valve 120 mm - on 2 pallet runners - red-brown
Plastic pallet box with funnel base, type GEO box (1000 x 600 x H662 mm – 180 liter). With slide valve 120 x 120 mm – on 2 pallet runners – red-brown.
Key features
About this product

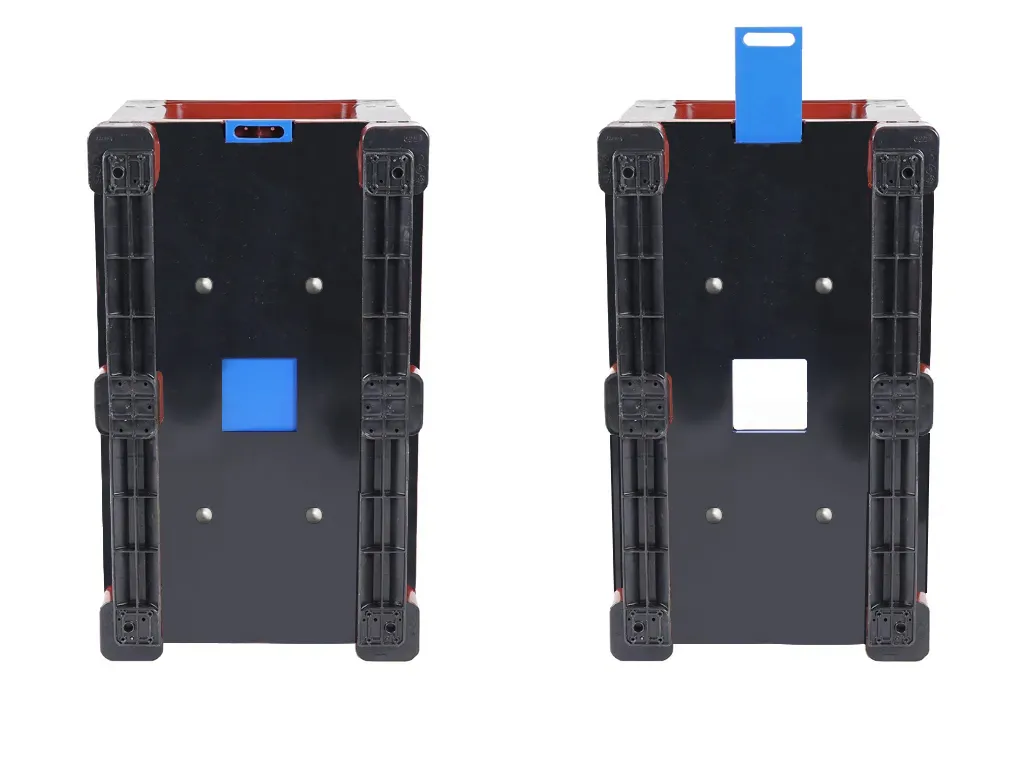

GEO box pallet container with funnel base (1000 x 600 x H662 mm – 180 liter). A small-format plastic pallet box with a bottom outlet, centrally positioned in the base of the pallet box. In the lower section of the pallet box, a tapered hopper base is welded in with a central opening of 120 x 120 mm. This opening is closed with a slide valve that can be manually operated from the short side. The GEO box, with its smooth interior and funnel-shaped base, is ideal for controlled dosing of dry bulk goods such as granules, seeds, grain, dry animal feed, wood pellets and other small components. Thanks to the sloping base at a 40° angle, the product flows out easily when the slide valve is opened. Tilting and tipping are therefore not necessary. The container is suitable for use with food.
Properties
- Food grade
Related products
-
4403.100.502.BD
Funnel base pallet box BIGBOX - 1200 x 800 mm - 450 liter - with slide valve 120 mm - on 4 feet - stackable with rim - grey
External dimensions (LxWxH)
1200 × 800 × 760 mm
Internal dimensions (LxWxH)
1110 × 710 × 575 mm
View
-
4403.100.DUOBD
Funnel base pallet box BIGBOX - 1200 x 800 mm - 850 liter - with 120 mm slide gate - on 4 feet - rim-stackable - grey
External dimensions (LxWxH)
1200 × 800 × 1215 mm
Internal dimensions (LxWxH)
1110 × 710 × 1060 mm
View
-
83271890.BD
Funnel base pallet box CB3 High - 1200 x 1000 mm - 850 liter - with slide valve 120 mm - 7 legs - grey
External dimensions (LxWxH)
1200 × 1000 × 1140 mm
Internal dimensions (LxWxH)
1108 × 897 × 960 mm
View
-
81941811.BD120
Funnel base pallet box SB3 - 1200 x 1000 mm - 500 liter - with 120 mm slide gate - on 2 runners and 1 leg - rim-stackable - grey
External dimensions (LxWxH)
1200 × 1000 × 790 mm
Internal dimensions (LxWxH)
1110 × 910 × 590 mm
View
-
81941811.DUO-H1195.BD120
Funnel base pallet box SB3 DUO - 1200 x 1000 mm - 900 liter - with 120 mm slide gate - on 2 runners and 1 foot - rim-stackable - grey
External dimensions (LxWxH)
1200 × 1000 × 1195 mm
Internal dimensions (LxWxH)
1110 × 910 × 995 mm
View
Customisation options
- Printing
- Cut-outs
- Welding
- Reinforcements
