4403.100.502.BD

Funnel base pallet box BIGBOX - 1200 x 800 mm - 450 liter - with slide valve 120 mm - on 4 feet - stackable with rim - grey

External dimensions ( L x W x H)
External dimensions ( L x W x H) 1200 × 800 × 760 mm
Internal dimensions (L x W x H)
Internal dimensions (L x W x H) 1110 × 710 × 575 mm

Plastic pallet box with funnel base, type BIGBOX (1200 x 800 x H760 – 450 liter). With slide valve 120 x 120 mm – on 4 feet – stackable with rim – grey.

Full description

Properties

External dimensions ( L x W x H) 1200 × 800 × 760 mm
Internal dimensions (L x W x H) 1110 × 710 × 575 mm
Capacity 450 liter
Sidewalls Closed
Material HDPE
Article number 4403.100.502.BD
Weight (kg) 45 kg
Temperature range -30°C to +40°C
Color Grey
Bottom Closed and reinforced, with a central bottom outlet.
Foodgrade Yes
Max. load capacity per box 500 kg
Max. static stacking load 4500 kg
Max. dynamic stacking load 1000 kg
Quantity per pallet 3
Copy properties

Key features

  • Plastic pallet box with funnel base on legs - fully plastic
  • Type: Based on the BIGBOX pallet box 1200 x 800 x H760 mm - 4 feet - grey
  • Load capacity: 500 kg
  • Capacity: 450 liter
  • Material: PE plastic (polyethylene) - corrosion-free and durable
  • Base: Tapered funnel base
  • Angle: The sloping base with a 25° incline supports easy emptying without tilting
  • Opening: Central opening 120 x 120 mm (optional 140 x 140 mm or 240 x 240 mm)

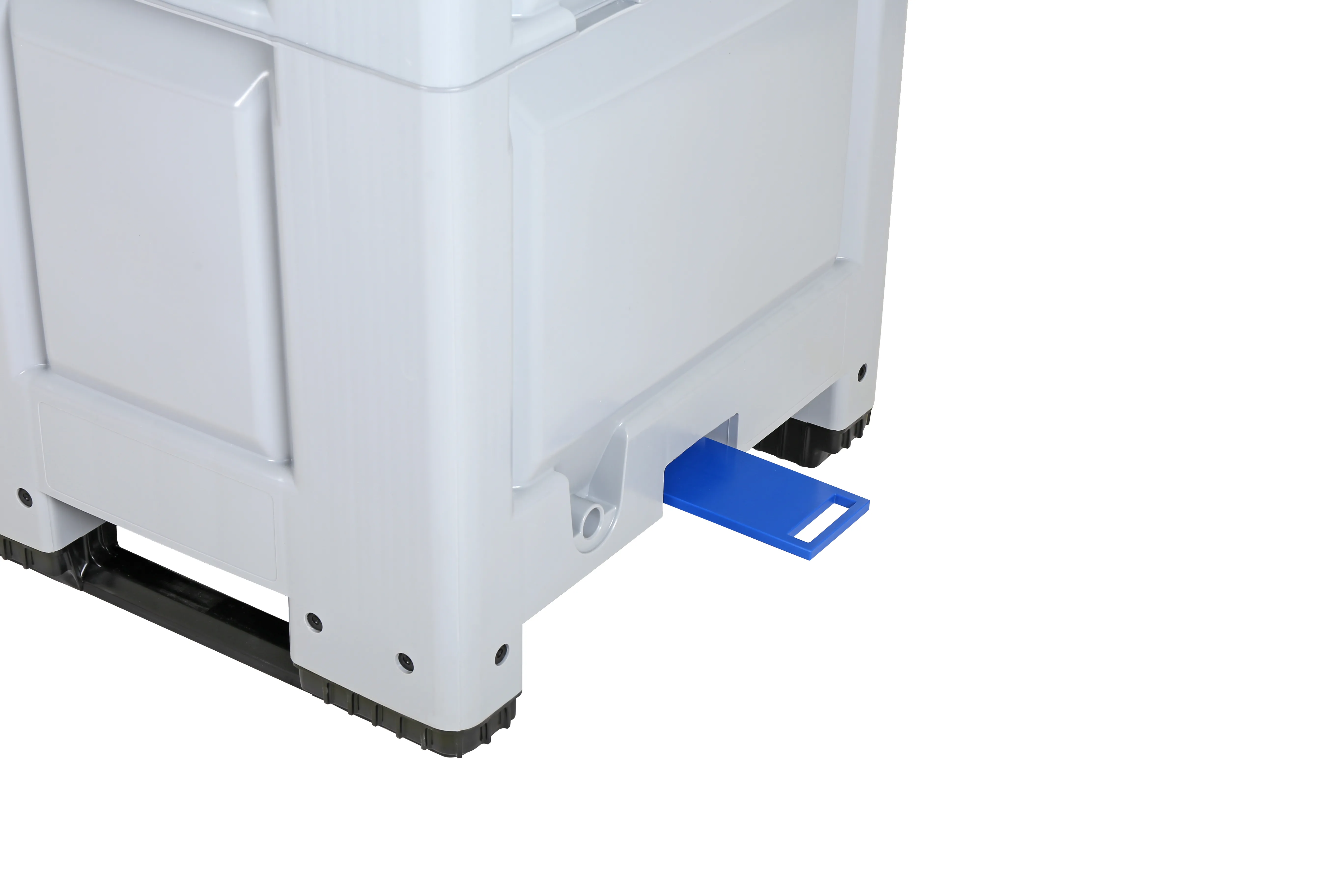

  • Slide valve: Manually operated from the short side for controlled release of contents
  • Application: Ideal for dry bulk goods such as granules, seeds, grain, dry animal feed, pellets and other small components
  • Design: Smooth, funnel-shaped interior to promote easy product flow
  • Stacking: Stable stackable design using the Euro stacking system, i.e. stackable with rim with most other pallet box types
  • Stability: Very robust pallet box that is widely used
  • Impact protection: Double-wall structure all around above the entry openings to prevent impact damage
  • Food safety: Suitable for direct contact with food
  • Cleaning: Easy to clean thanks to the smooth design. The plastic is resistant to most cleaning agents and chemicals
  • Limitations: Not suitable for liquids and moist products. Less suitable for powders (test in advance)
  • Options: Lid - RFID code - QR code or barcode - central outlet opening 140 x 140 mm or 240 x 240 mm - box in other colours: blue, yellow, green, orange, red, white and black - slide valve on the long side (120 x 120 mm)

About this product

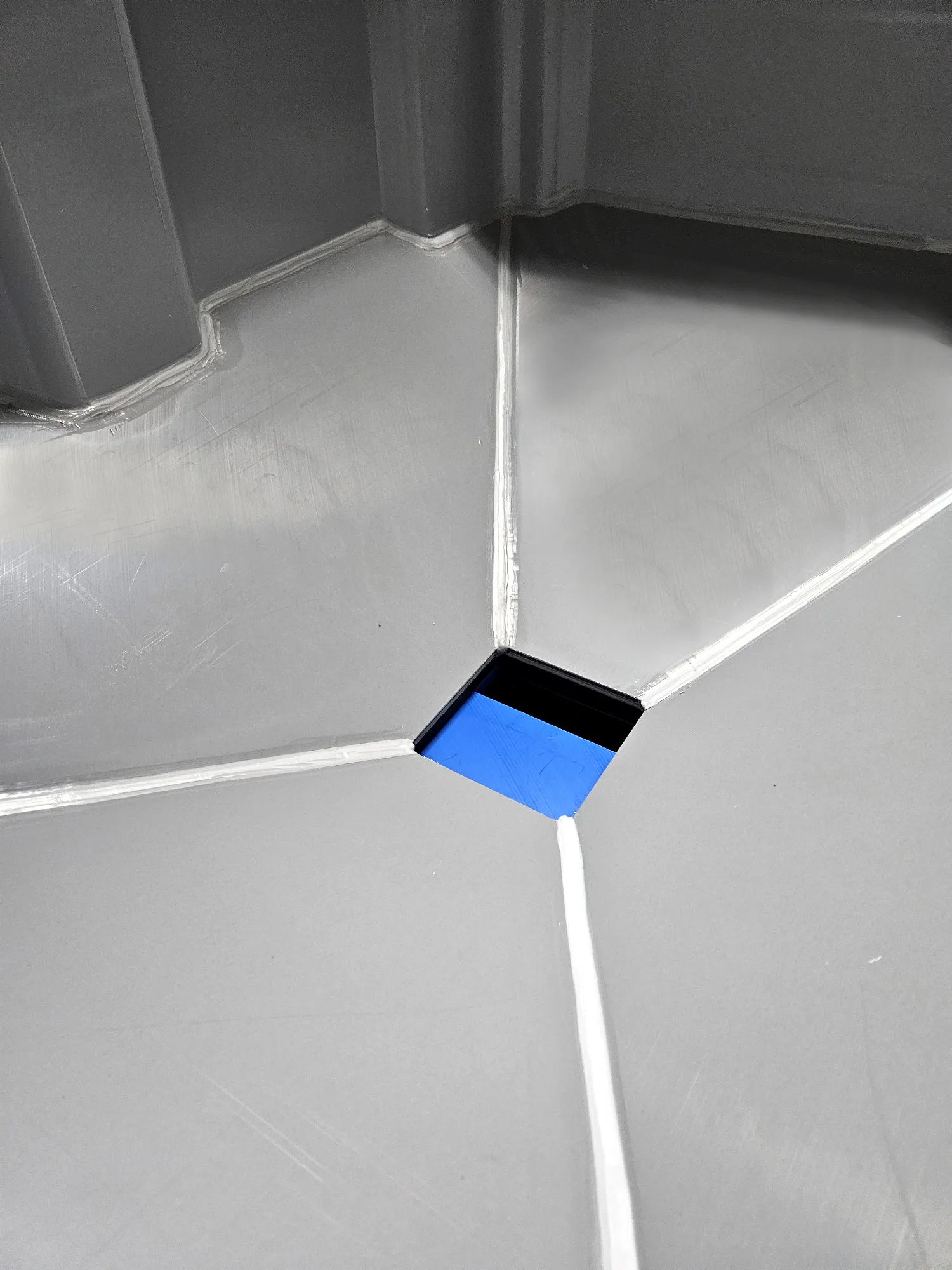

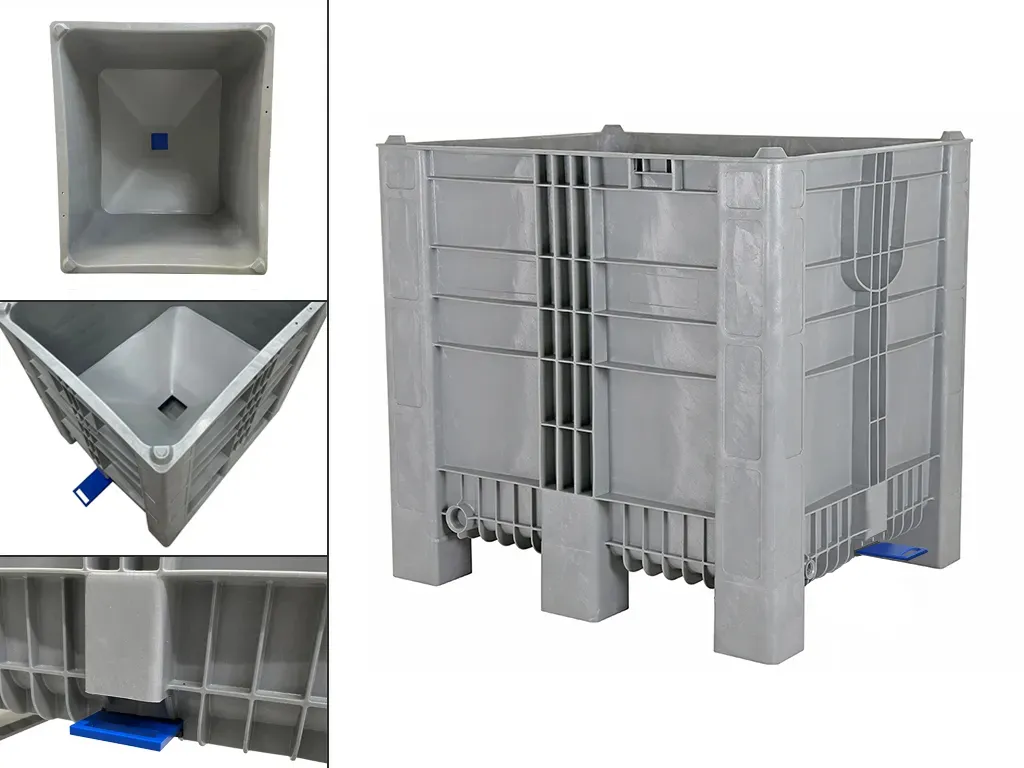

The BIGBOX pallet box with funnel base measures 1200 x 800 x H760 mm and has a capacity of 450 liter. This plastic pallet box features a 120 x 120 mm outlet on the underside, centrally positioned in the base. This opening can be manually closed with a slide valve that is operated from the short side of the box.

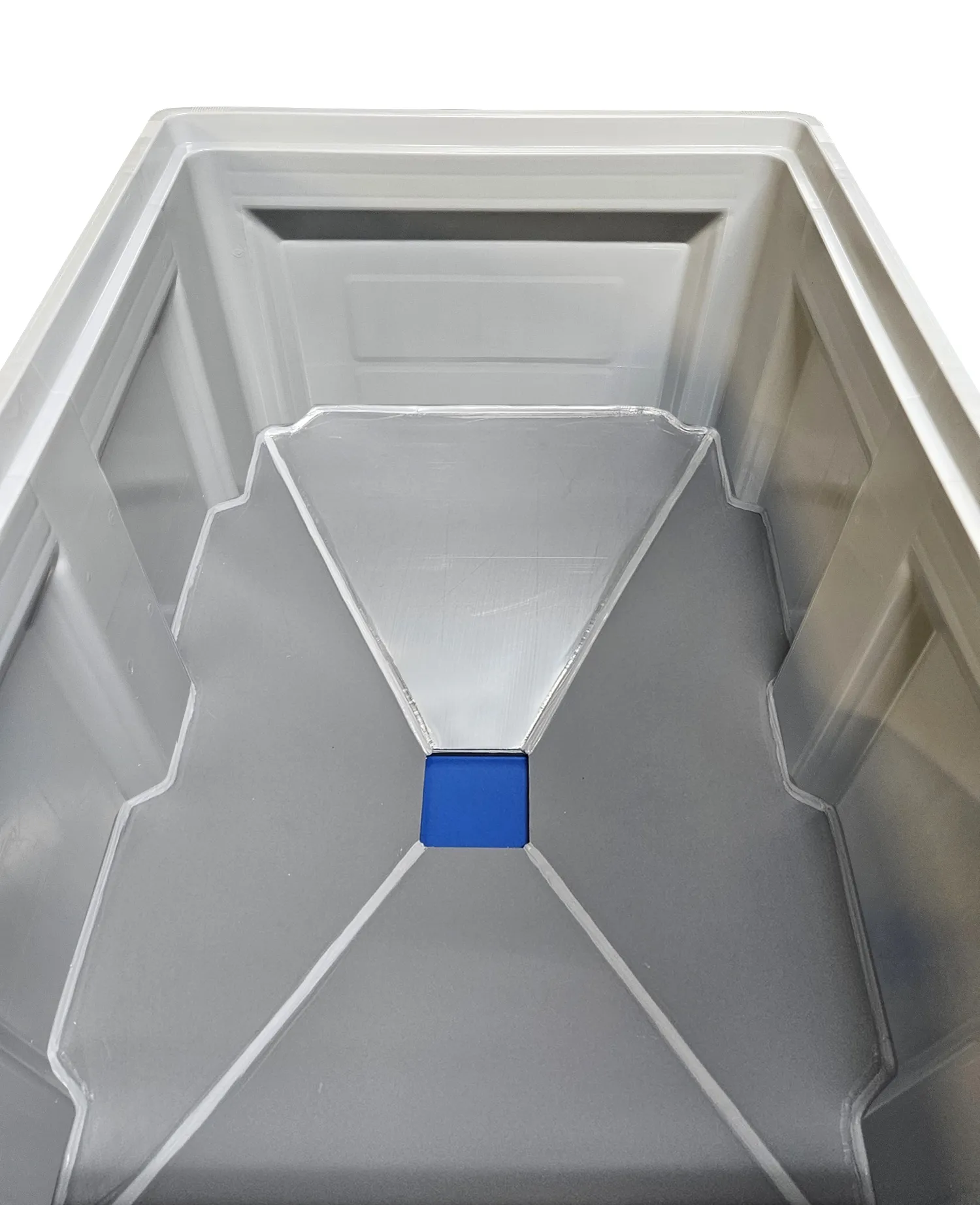

The inside of the BIGBOX has outward-flaring side panels for optimum volume. The lower section is funnel-shaped with a 25-degree slope, allowing the contents to flow out easily when the slide valve is opened. This eliminates the need to tilt or tip the box. Ideal for dosing dry bulk goods such as seeds, grain and dry animal feed, but also granules, wood pellets and small components. The pallet box and the entire interior are made from food-grade plastic, so direct contact with food is not a problem.

Properties

  • Food grade
Behälter Transoplast Lager

Customisation options

  • Printing
  • Cut-outs
  • Welding
  • Reinforcements
More about custom solutions

Want to know more about the applications of our products?

A warehouse bin is the key to an organised and efficient warehouse. Curious about the possibilities? Speak to one of our specialists.
Speak to a specialist
Funnel base pallet box BIGBOX - 1200 x 800 mm - 450 liter - with slide valve 120 mm - on 4 feet - stackable with rim - grey 4403.100.502.BD
