HB3 pallet boxes

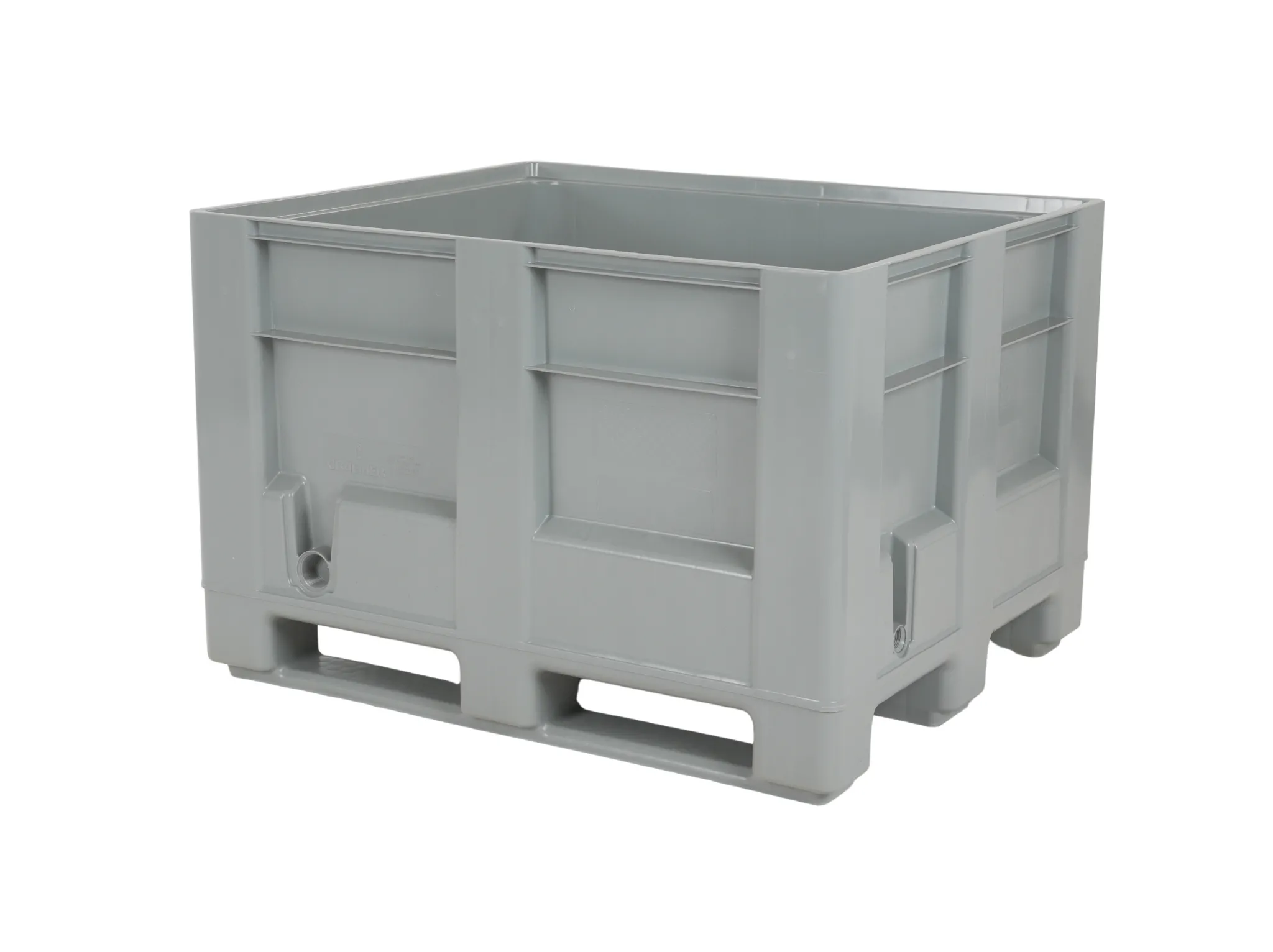

Hygiene Pallet Box HB3

The HB3 pallet box features the standard pallet size of 1200 x 1000 mm and is designed for intensive use in warehouses, production lines and automated distribution centres. The box consists of an injection-moulded top section and base, which are seamlessly welded together. This welding process creates an extremely strong and fully enclosed construction, making the pallet box resistant to heavy loads. It also enables efficient cleaning and drying.

A key advantage of the HB3 pallet box is its hygienic design. The box has flat, smooth inner walls and closed pallet runners – without deep ribs that can trap dirt. This allows for easy emptying of contents and ensures that both the box and runners can be cleaned quickly and thoroughly. This is particularly important in stacking situations where the runners are positioned above the contents of the box below.

The pallet boxes are equipped with reinforced pallet runners based on the same design as our well-known H1 pallets. This ensures an exceptionally long service life. In addition, the runners are so stable that they can be used in any automated application – wherever strict requirements apply regarding flatness and minimal deflection. The strong connection of the runners also makes the box suitable for use with a rotary tipper (tilting system), significantly improving the efficiency of emptying heavy bulk goods.

The double-walled construction above the entry openings acts as an impact buffer. This prevents damage from collisions with forklifts or other internal transport equipment, significantly extending the service life of the pallet box.

HB3 pallet boxes are designed for rim stacking. This makes them fully compatible with most other pallet boxes in the 1200 x 1000 mm format, such as our BIG BOXES and SB3 pallet boxes. As a result, they can be easily integrated into existing logistics systems and stacking processes.

Why choose our HB3 hygiene pallet box?

HB3 pallet boxes have been developed for companies that require durable, hygienic and robust bulk containers. Thanks to their solid construction and smart design, our boxes truly deliver these benefits.

Key advantages

• Seamlessly welded construction for maximum hygiene
• Smooth, flat inner walls for quick emptying and effective cleaning
• Single-wall design – without complex structures
• No foam filling used – fully recyclable
• Robust pallet runners for extra stability and maximum flatness
• Suitable for automated systems where minimal deflection and flatness are essential
• Suitable for tilting with a rotary tipper
• Double-walled, shock-absorbing impact buffers above the entry openings – protection against collision damage
• Rim stackable – compatible with most other pallet boxes 1200 x 1000 mm
• Suitable for automated warehouses
• Maintenance-free with a long service life

Hygienic design

Thanks to the near absence of external reinforcing ribs and the smooth interior, the accumulation of dirt and moisture is prevented. This makes HB3 pallet boxes particularly suitable for applications where hygiene, food safety and ease of cleaning are critical.

Suitable for internal transport systems

The pallet box operates seamlessly on virtually all common internal transport systems, such as:

• forklifts
• pallet trucks
• roller conveyors
• conveyors
• automated storage systems

This makes HB3 pallet boxes perfectly suited for all logistics environments.

Technical specifications HygienePalletBox HB3

HDPE plastic is highly impact-resistant, chemically resistant and resistant to temperature fluctuations. This ensures that the pallet boxes continue to perform reliably even under demanding conditions.

Versions and applications of our HygienePalletBox

HB3 pallet boxes are used across various industries where large volumes and heavy loads must be stored and transported hygienically. For extremely heavy-duty applications, the base can be additionally reinforced with 3 fully integrated reinforcement profiles.

Common applications

Food industry

• Storage of raw materials
• Transport of semi-finished products
• Hygienic food production

Fisheries sector

• Storage of fish and fish products – also on ice
• Bulk transport of fish

Pharmaceutical and chemical industries

• Transport of products
• Storage of bulk goods

Matching products for the HygienePalletBox

To make the use of the HB3 pallet box even more efficient, various accessories are available.

Common options include:

• Plastic lid for HB3 pallet box 1200 x 1000 mm
• Plastic turning stops
• Plastic outlet taps
• RFID transponders
• Printing options: name, logo, numbering, QR codes, barcodes and more
• Anti-slip under the pallet runners
• Reinforcement profiles (3) integrated into the base section
• Custom colours for the upper section

By combining these accessories, a complete and efficient logistics system is created.

Practical case: more efficient transport in a fish processing company

A company in the fisheries sector processes large volumes of residual flows from fish processing companies on a daily basis. Previously, traditional pallet boxes with deep rib structures on the outside were used. This caused product residues to remain behind, resulting in additional cleaning time and hygiene risks.

After switching to HB3 pallet boxes with smooth walls, the company was able to significantly speed up the cleaning process. Product residues hardly remained, and the boxes were easier to empty by tilting with a rotary tipper.

Result:

• 35% faster cleaning and drying
• less downtime in the production line
• lower maintenance costs
• improved food safety
