Funnel base pallet box BIGBOX - 1200 x 800 mm - 850 liter - with 120 mm slide gate - on 4 feet - rim-stackable - grey
Plastic pallet box with funnel base, type BIGBOX (1200 x 800 x H 1245 mm – 850 liter). With 120 x 120 mm slide gate – on 4 legs – rim-stackable – grey.
Properties
| External dimensions ( L x W x H) | 1200 × 800 × 1215 mm |
|---|---|
| Internal dimensions (L x W x H) | 1110 × 710 × 1060 mm |
| Capacity | 850 liter |
| Sidewalls | Closed |
| Material | HDPE |
| Article number | 4403.100.DUOBD |
| Weight (kg) | 80 kg |
| Temperature range | -30°C to +40°C |
| Color | Grey |
| Bottom | Closed and reinforced, with a central bottom outlet. |
| Foodgrade | Yes |
| Max. load capacity per box | 500 kg |
| Max. static stacking load | 4500 kg |
| Max. dynamic stacking load | 1000 kg |
| Quantity per pallet | 2 |
Key features
- Plastic pallet box with funnel base on feet - fully plastic.
- Type: Based on the BIGBOX pallet box 1200 x 800 x H 1245 mm - 4 feet - grey.
- Load capacity: 500 kg.
- Capacity: 850 liter.
- Material: PE plastic (polyethylene) - corrosion-free and durable.
- Base: Tapered funnel base.
- Angle: The sloping base with a 25° incline supports easy emptying without tilting.
- Opening: Central opening 120 x 120 mm (optional 140 x 140 mm or 240 x 240 mm).

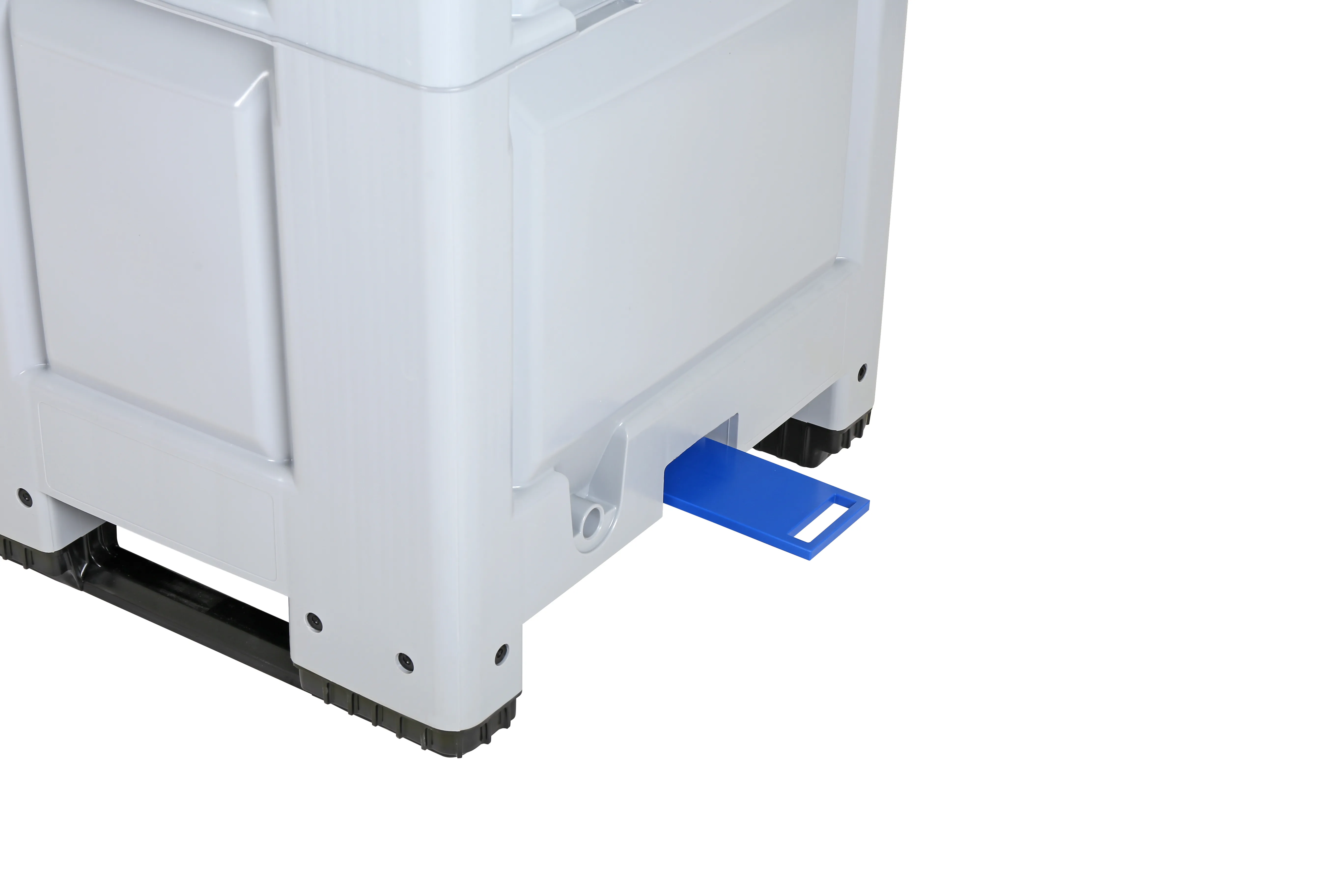

- Slide gate: Manually operated from the short side for controlled release of the contents.

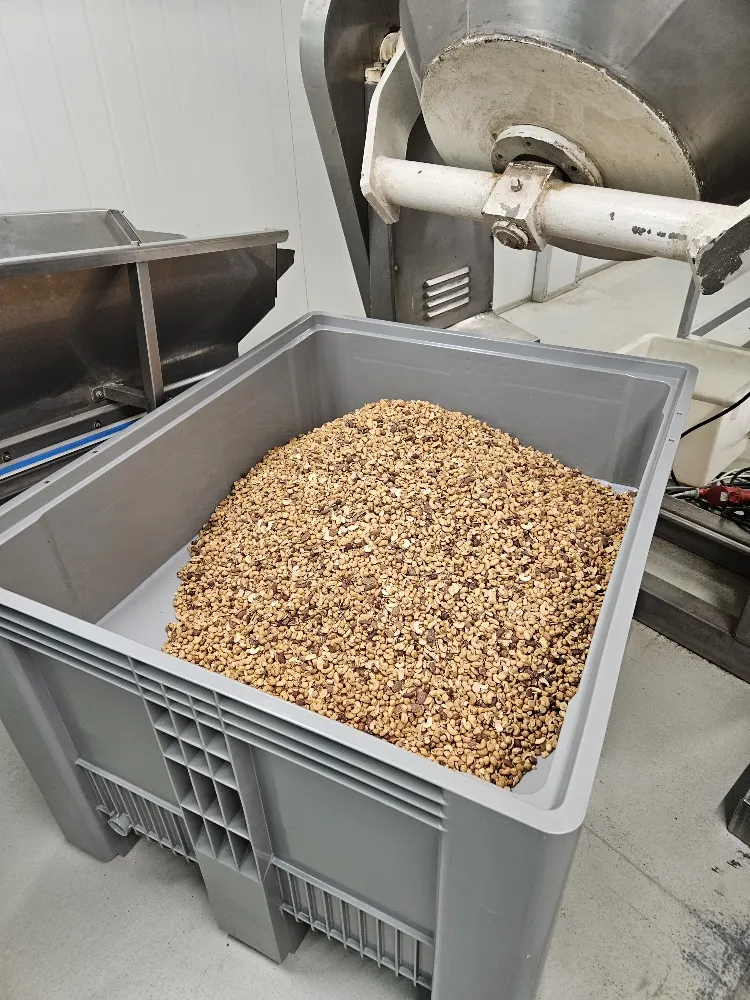

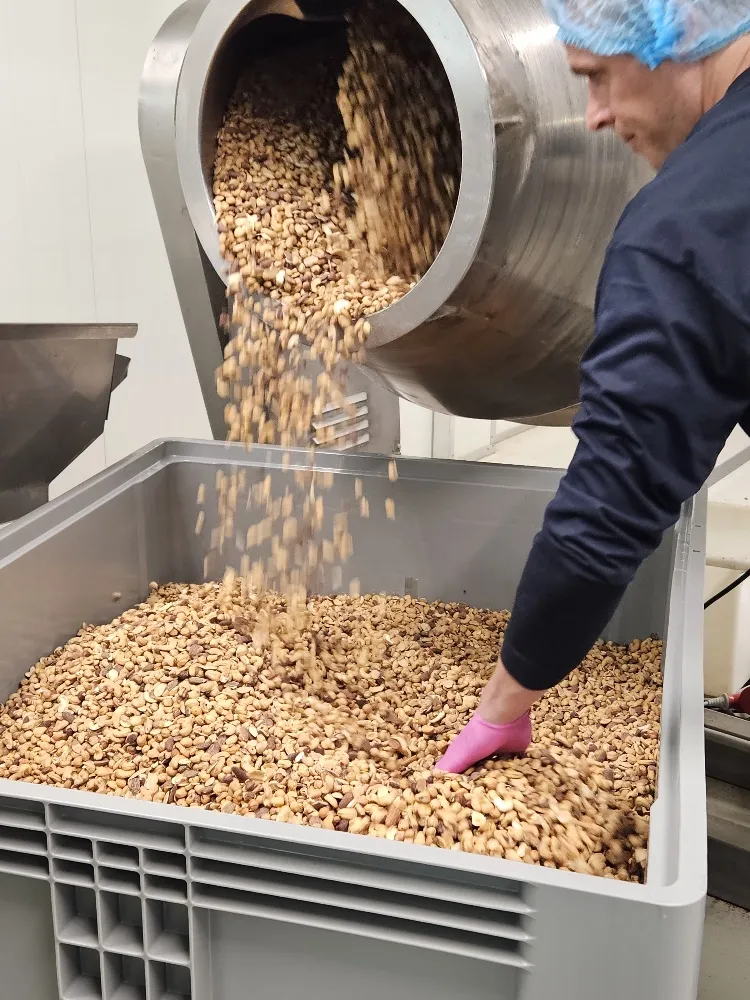

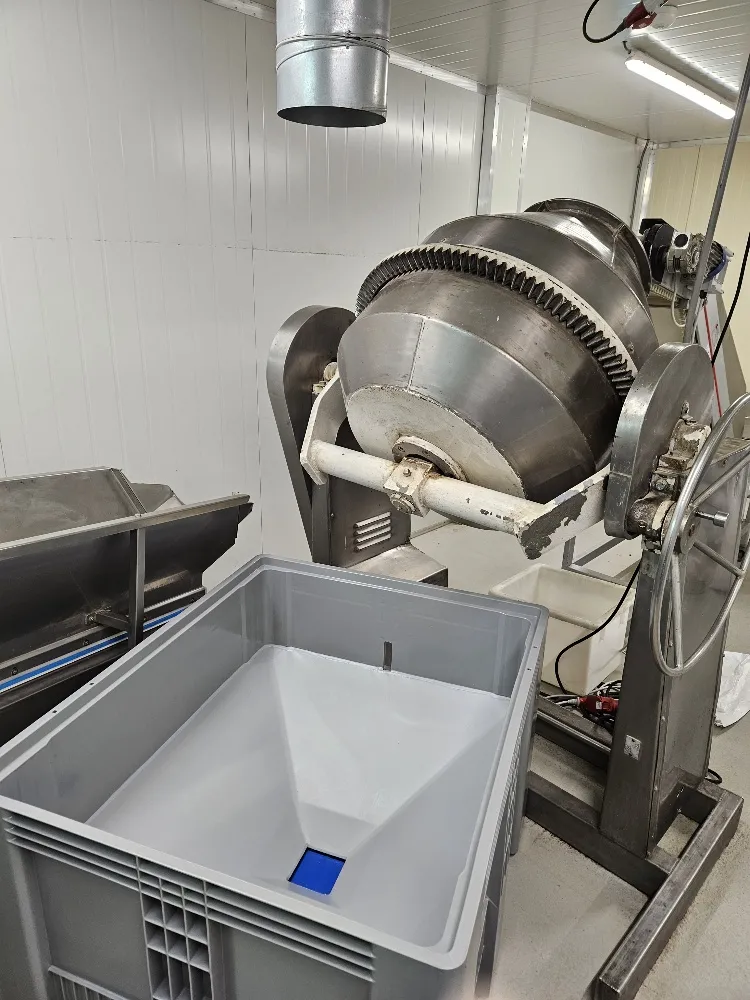

- Application: Ideal for dry bulk goods such as granules, seeds, grain, dry animal feed, pellets and other small components.
- Design: Smooth, funnel-shaped interior to promote easy product flow.
- Stacking: Stable stacking via the Euro stacking system, i.e. rim-stackable with most other pallet box types.
- Stability: Very robust pallet box that is widely used.
- Impact protection: Double-wall structure all around above the entry openings to prevent impact damage.
- Food safety: Suitable for direct contact with food.
- Cleaning: Easy to clean thanks to the smooth design; the plastic is resistant to most cleaning agents and chemicals.
- Limitations: Not suitable for liquids and moist products. Less suitable for powders (test in advance).
- Options: Lid - printing - RFID code - QR code or barcode - central outlet opening 140 x 140 mm or 240 x 240 mm - box in non-standard colours: blue, yellow, green, orange, red, white and black - slide gate on the long side (120 x 120 mm).
About this product
The BIGBOX pallet box with funnel base measures 1200 x 800 x H 1245 mm and has a capacity of 850 liter. This large-format plastic pallet box features a 120 x 120 mm outlet at the bottom, centrally positioned in the base. This opening can be closed manually with a slide gate operated from the short side of the box.

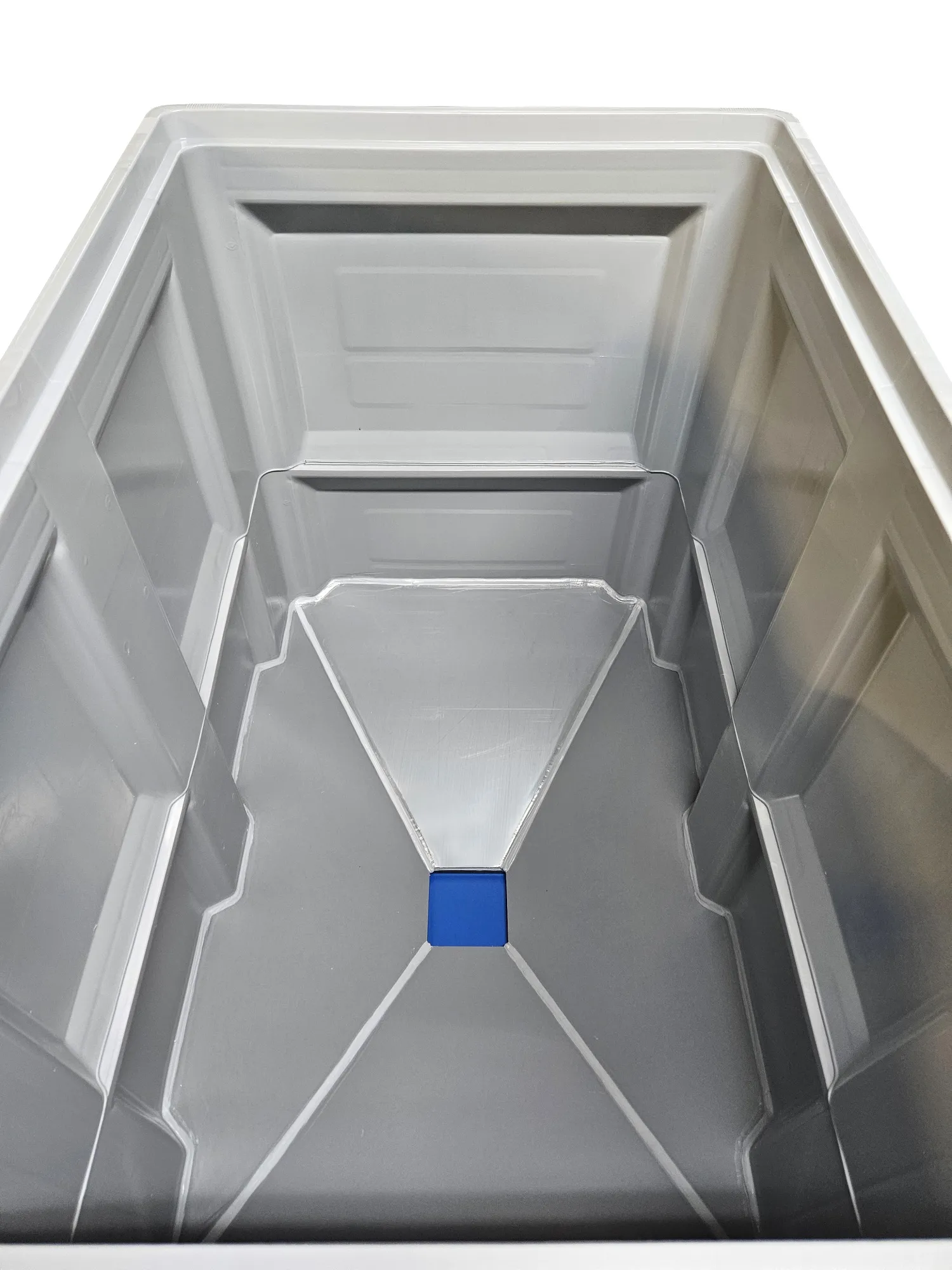

The inside of the BIGBOX has outward-sloping wall panels for optimal volume. At the bottom, the box is funnel-shaped with a 25° slope, allowing the contents to flow out easily when the slide gate is opened. This makes tilting or dumping the box unnecessary. Ideal for dosing dry bulk goods such as seeds, grain and dry animal feed, but also granulates, wood pellets and small components. The pallet box and the entire inner construction are made of food-grade plastic, so direct contact with food is not a problem.
Properties
- Food grade
