Industrial pallet H3-L - 1200 x 1000 mm - with 7 mm rims - 3 open pallet skids - black ESD

External dimensions ( L x W x H)

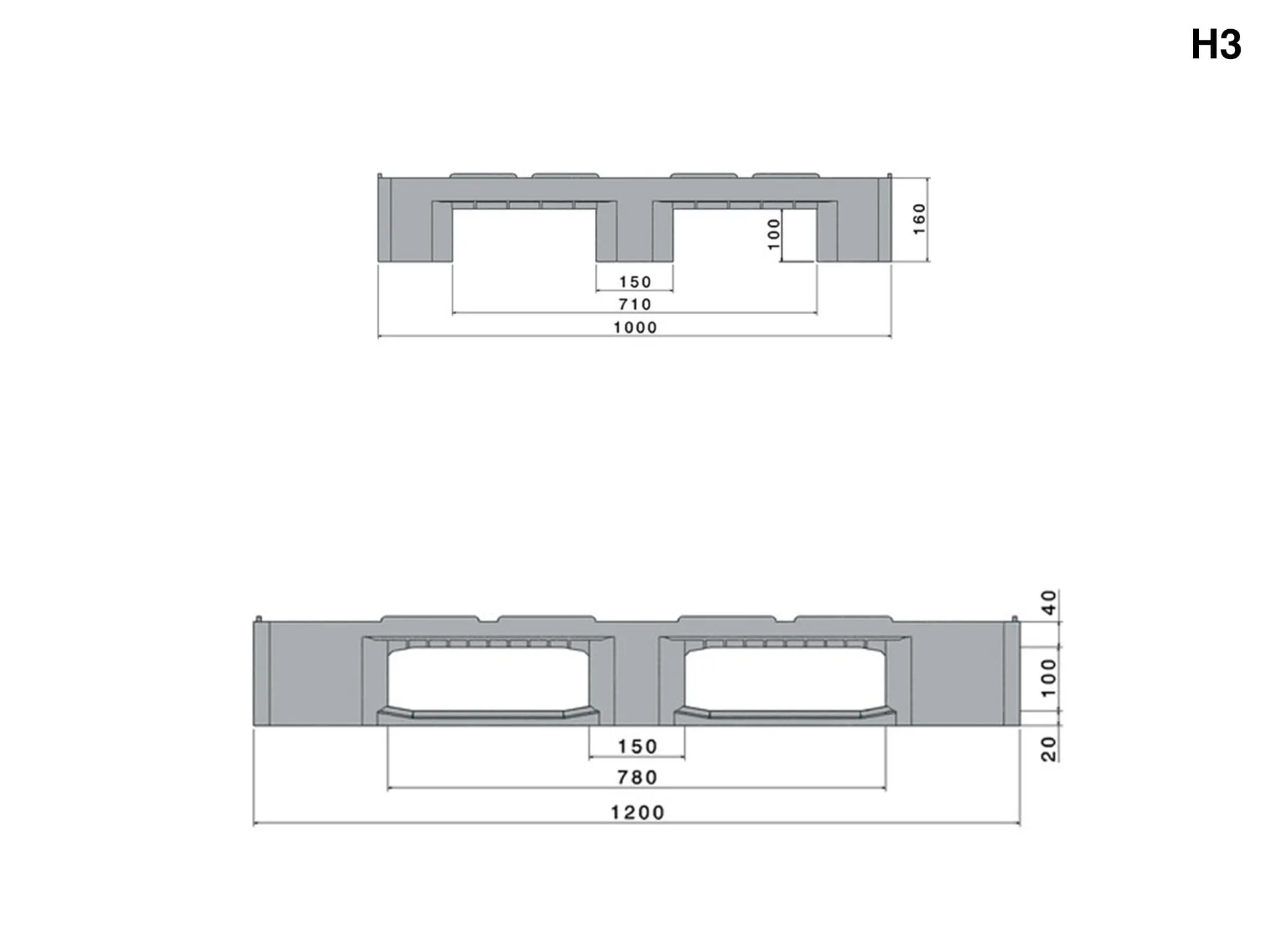

External dimensions ( L x W x H) 1200 × 1000 × 160 mm
Dynamic load capacity
Dynamic load capacity 1250 kg

Industrial pallet / ISO pallet type H3-L (1200 x 1000 x H 160 mm) – ESD version: electrically conductive plastic – with 3 longitudinal pallet skids, undersides of blocks and skids open – 7 mm raised rims.

Full description

Properties

External dimensions ( L x W x H) 1200 × 1000 × 160 mm
Dynamic load capacity 1250 kg
Material HDPE with carbon compound
Article number 83182222
Weight (kg) 21,5 kg
Temperature range -30°C to +40°C, briefly up to +90°C
Color Black
Surface resistance ≥1x40 E4 Ohm to <1x10E11 Ohm
Electrostatic Discharge 1
Foodgrade No
Static load capacity 5000 kg
Edge height 7 mm
Load capacity in racks 850
Quantity per pallet 15
Copy properties

Key features

  • Electrostatic dissipative (ESD): protects sensitive components against charge build-up and electrostatic discharge
  • Undersides of blocks and pallet skids are open (ribbed)
  • Raised rims around the deck of the H3-L prevent loads from slipping and prevent empty pallets from sliding on each other
  • The H3-L is extra strong thanks to the robust connection between the skids and the blocks
  • Marking, logos or numbering on request; location to be agreed
  • Options: Pallet lid / pallet cover - QR codes and barcodes - RFID transponders

About this product

Our ESD pallets are produced from high-quality plastic to which an ESD compound is added. This gives the pallet electrically conductive properties. It prevents electrostatic build-up and subsequent discharge, which can damage sensitive electronics.

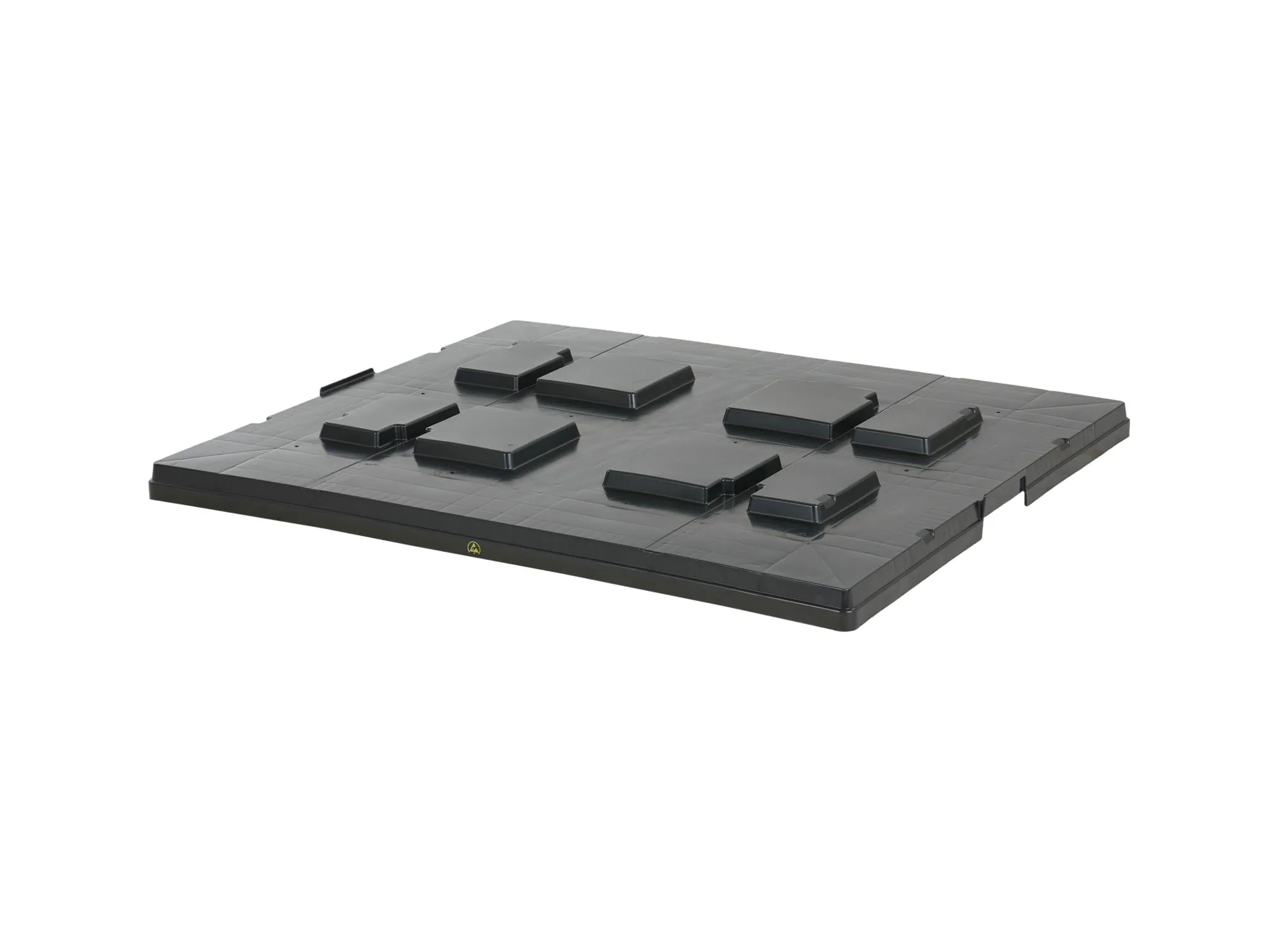

The H3-L pallet is designed for efficient transport of Euro standard stacking bins (ESD version). For additional centring of a full pallet load with stacking bins, we supply a 1200 x 1000 mm pallet lid in an ESD version.

Properties

  • Anti-static (ESD)
Behälter Transoplast Lager

Customisation options

  • Printing
  • Cut-outs
  • Welding
  • Reinforcements
More about custom solutions
