Industrial / ISO pallet CS3-L – 1200 x 1000 mm – with 7 mm rims – 3 pallet skids, open with reinforcement ribs – black ESD

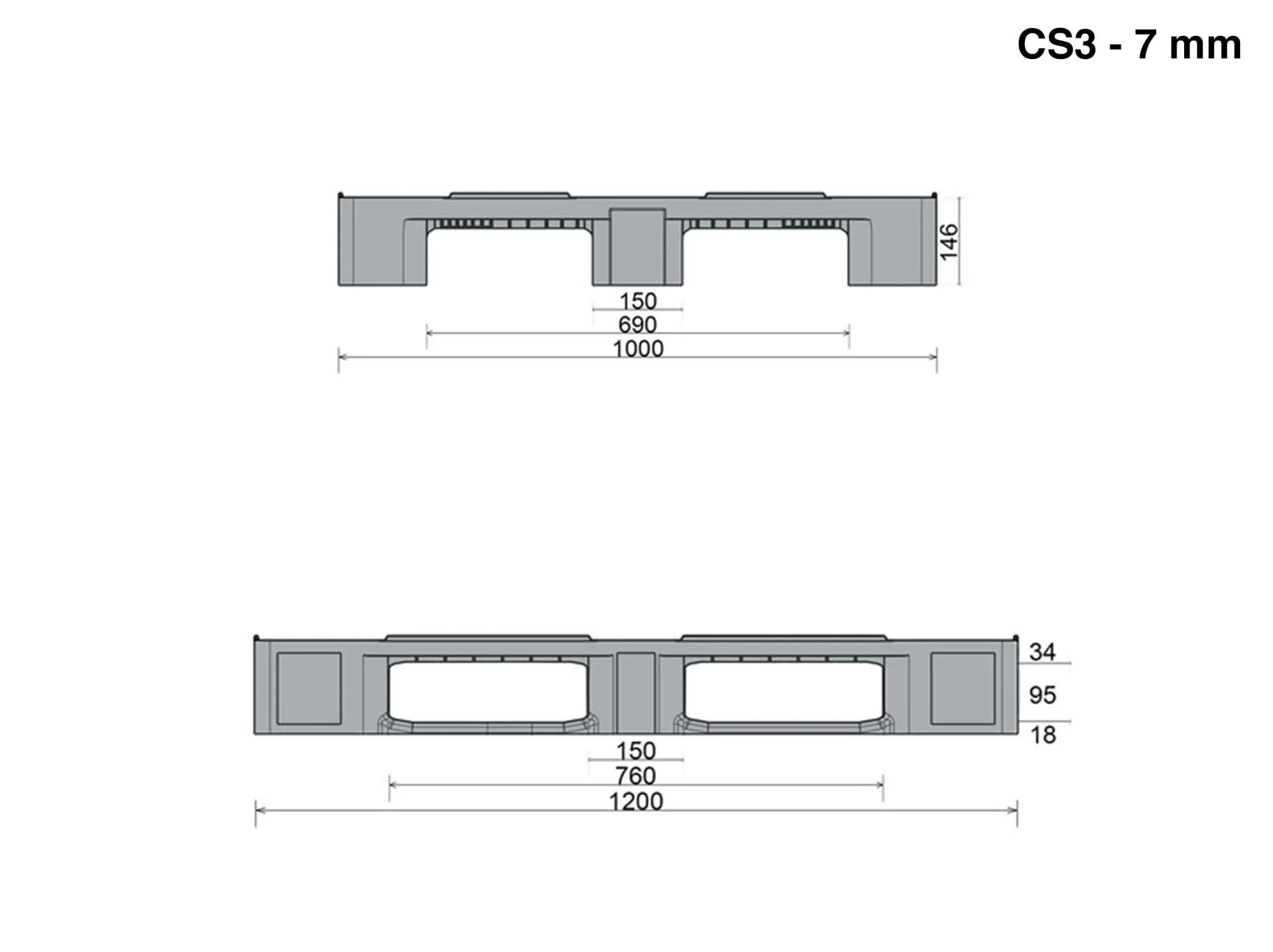

Industrial pallet type CS3-L (1200 x 1000 x H 146 mm) - ESD version: electrically conductive plastic. Equipped with 3 longitudinal pallet skids with reinforcement ribs - with 7 mm rims all around.

Full description
Bedrukking

Need printing?

Letters, numbers or logo

Configure

0,00 per piece(0,00 Incl. VAT)

Request a quote

Would you prefer personal advice?

Our product advisors are happy to help you.

Contact us

Product specifications

External dimensions ( L x W x H) 1200 × 1000 × 150 mm
Dynamic load capacity 1000 kg
Material HDPE with carbon compound
Article number 83222201
Weight (kg) 15,2 kg
Temperature range -30°C to +40°C, briefly up to +90°C
Color Black
Surface resistance ≥1x10 E4 Ohm to <1x10 E11 Ohm
Electrostatic Discharge 1
Foodgrade No
Static load capacity 5000 kg
Edge height 7 mm
Load capacity in racks 400
Quantity per pallet 16

Description

Our ESD pallets are produced from high-quality plastic to which an ESD compound is added. This gives the pallet electrically conductive properties. It prevents electrostatic build-up and subsequent discharge, which can damage sensitive electronics.

The CS3-L is designed for efficient transport of Euro standard stacking bins (ESD version). For additional centring of a full pallet load with stacking bins, we supply a 1200 x 1000 mm pallet lid in an ESD version.

Product datasheet

Download

Properties

  • Electrostatic dissipative (ESD): protects sensitive components against charge build-up and electrostatic discharge
  • Undersides of blocks and pallet skids are open with reinforcement ribs
  • Raised rims around the deck of the CS3-L prevent loads from slipping and prevent empty pallets from sliding on each other
  • The CS3-L is extra strong thanks to the robust connection between the skids and the blocks
  • Optional fully welded (closed) skids increase the pallet’s strength and impact resistance
  • Marking, logos or numbering on request; location to be agreed
  • Options: Pallet lid / pallet cover - QR codes and barcodes - RFID transponders - closed skids - version without rims, with 7 or 22 mm deck rims, with 22 mm side rims along the deck
