83230801

Euro pallet CR1 – 1200 x 800 mm – with 3 longitudinal skids – without rims – with anti-slip strips – reinforced

Euro pallet type CR1 (1200 x 800 x H 160 mm) with anti-slip strips on the deck. With 3 fully integrated reinforcement profiles in the deck - grey/blue.

Full description
Bedrukking

Need printing?

Letters, numbers or logo

Configure

0,00 per piece(0,00 Incl. VAT)

Request a quote

Would you prefer personal advice?

Our product advisors are happy to help you.

Contact us

Product specifications

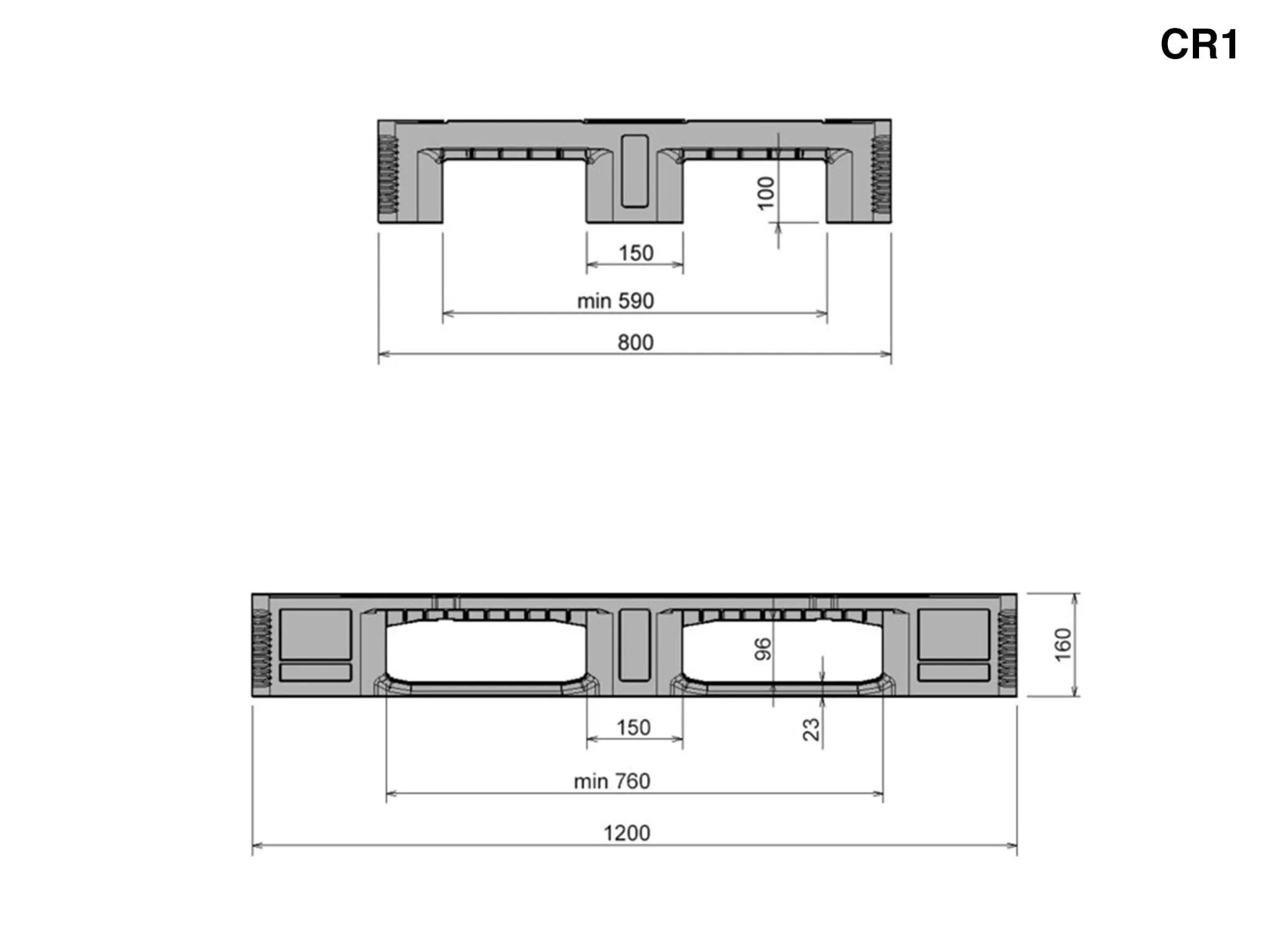

External dimensions ( L x W x H) 1200 × 800 × 160 mm
Dynamic load capacity 1750 kg
Material HDPE
Article number 83230801
Weight (kg) 19 kg
Temperature range -30°C to +40°C, briefly up to +90°C
Color Grey
Foodgrade Yes
Static load capacity 7500 kg
Load capacity in racks 1750
Quantity per pallet 15

Description

The CR1 Euro pallet is a plastic pallet with a wide range of applications - including in the food industry. This version with fully integrated reinforcement profiles is mainly used for demanding applications. The metalworking industry, mechanical engineering and pooling organisations are regular users. Thanks to its minimal deflection, the CR1 is also widely used in automated logistics systems.

The CR1 pallet is fitted as standard with 3 wide anti-slip strips on the deck - to centre loads, but also to keep empty pallets aligned when stacked. Raised rims are therefore unnecessary, and in some situations they can even be undesirable.

With its heavy-duty skids and deck reinforcements, the CR1 offers an impressive racking load capacity of up to 1750 kg. That is why our CR1 is our absolute top performer for industrial use.

In addition to load capacity, impact resistance is crucial for a plastic pallet - and the CR1 delivers. The choice of plastic is also key. This version is therefore made from high-quality virgin HDPE, which is essential for both impact strength and temperature resistance. This CR1 pallet can be used in a shock freezer without any issues.

Product datasheet

Download

Properties

  • Extremely robust, top-of-the-range plastic pallet
  • Equipped with 3 longitudinal reinforcement profiles
  • The reinforcements are hermetically enclosed within the deck and made from corrosion-resistant spring steel
  • The CR1 pallet offers a racking load capacity of up to 1750 kg
  • The skids are chamfered on both sides - for easy handling with hand pallet trucks, etc.
  • Made from high-quality virgin HDPE, providing excellent impact resistance and freeze resistance
  • With profiled corner blocks for improved grip of stretch and wrapping film
  • Suitable for direct food contact
  • Marking, logos and numbering on request; position to be agreed
  • Options: pallet lid / pallet cover - pallet collars - QR codes and barcodes - RFID transponders - top deck without rims or with 7 mm rims
