Pallet box CB3 High - 1200 x 1000 x H 1140 mm - 1000 liter - 3 sledes - grey
CB3 High – large-format plastic pallet box (1200 x 1000 x H1140 mm – 1000 liter). Food-grade pallet box on three sledes with closed side walls and reinforced base.
Key features
Matching accessories
-
83390800
Lid 1200 x 1000 mm - for pallet box CB3, CB3 High and CB3 Low - grey
External dimensions (LxWxH)
1200 × 1000 × 82 mm
View
-
89692164
Recessed 1" screw plug - food-grade - for pallet boxes type SB, CB3 High or HB - unmounted
External dimensions (LxWxH)
40 × 40 × 33 mm
View
-
89692165
Recessed 2" screw plug - food-grade - for pallet boxes type SB, CB3 High and HB - unmounted
External dimensions (LxWxH)
74 × 74 × 42 mm
View
-
1612251.L
Check tap 2″ for pallet boxes - mounted on the long side - dark grey
External dimensions (LxWxH)
215 × 125 × 160 mm
View
-
1612252.L
Check tap 2″ with angled outlet for pallet boxes - mounted on the long side - dark grey
External dimensions (LxWxH)
285 × 125 × 160 mm
View
-
1612257.K
Check tap 1″ with angled outlet for pallet boxes - mounted on the short side - food-safe
External dimensions (LxWxH)
190 × 105 × 130 mm
View
-
99.CVSH.1210
Coversheet - elasticated cover - for 1200 × 1000 mm boxes - blue (PU = 200)
External dimensions (LxWxH)
1250 × 1050 × 250 mm
View
About this product
The construction
This large-format pallet box is injection moulded in one piece, with the box and the base forming one unit. This is a technical achievement in itself, but it also has a very practical reason. Because of the large volume of 1000 liter, a particularly robust construction is required. This is especially important when the box is used intensively in logistics, on roller conveyors and in automated systems. Deflecting pallet runners, or even worse … pallet runners that come loose, would be disastrous. Thanks to its construction, the CB3 High does not suffer from this.
Logistics

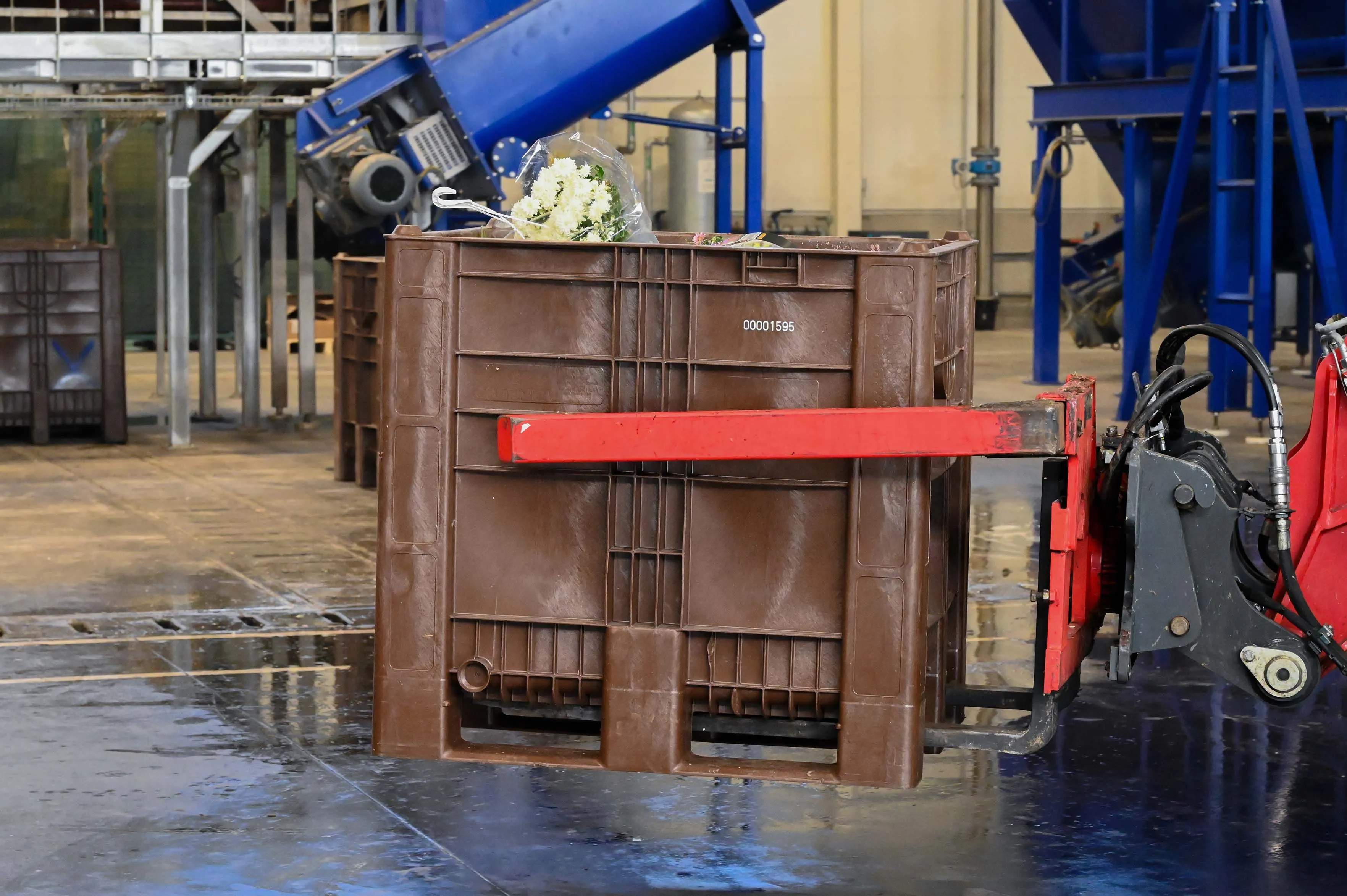

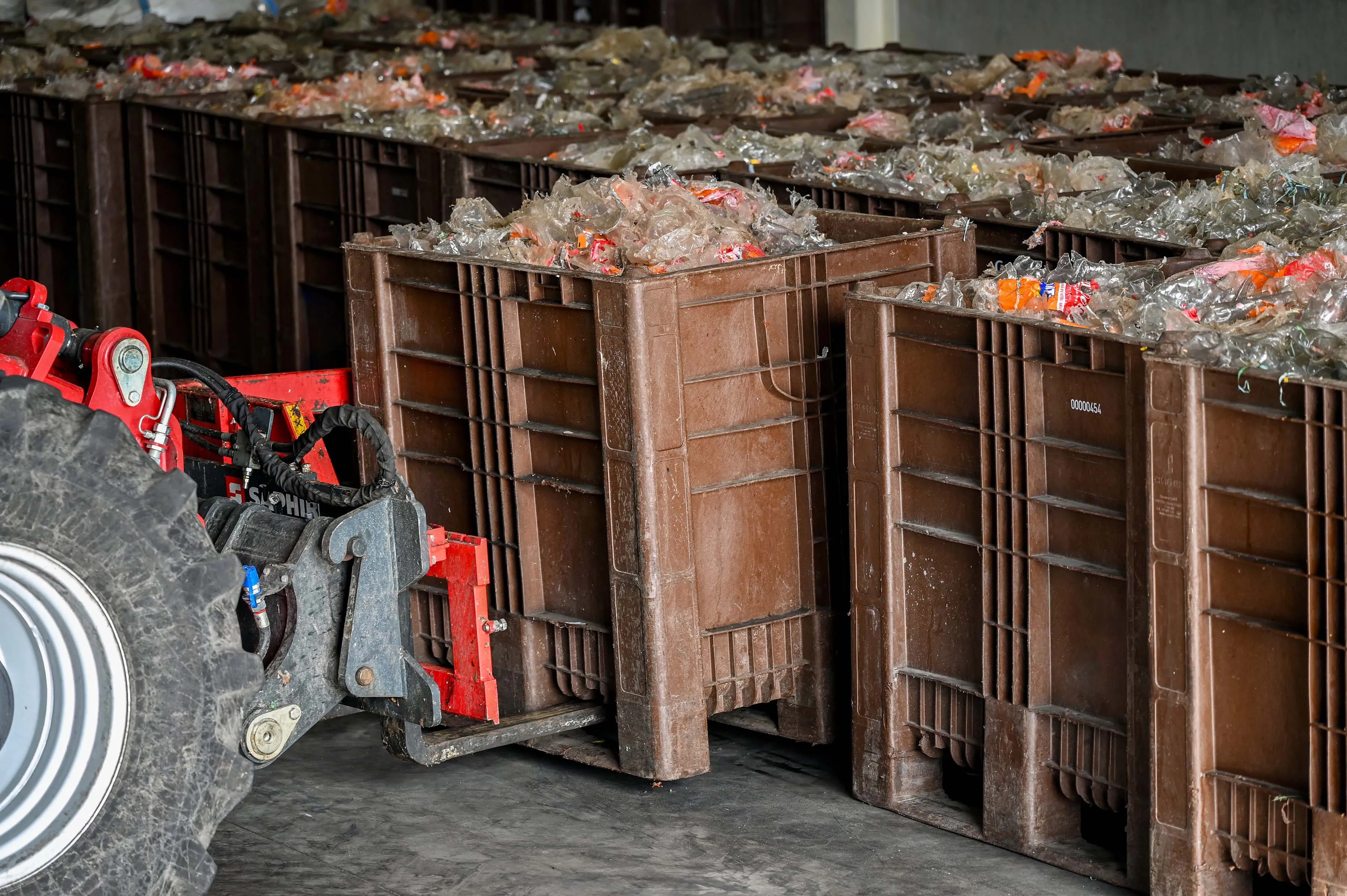

Pallet boxes used in production companies or logistics operations are exposed to heavy use in practice. Forklift transport and chain conveyors in particular present a challenge. However, the CB3 High is perfectly equipped for both applications. First of all, a robust ribbed structure is located above the entry openings - all around the box. This structure serves as a buffer zone to prevent impact damage caused by internal transport equipment - and it works very effectively. In addition, the thick-walled pallet runners are connected to the entire box construction with a generous radius. As a result, CB3 High boxes can be stacked up to 5 high, each with a content load of 1000 kg. Finally, the base is equipped with a substantial ribbed structure. All in all, these aspects form a solid basis for the most demanding logistics conditions.
Its versatility
The CB3 High is primarily intended for heavy loads and for use with bulky goods. For this purpose, this large-volume box has the perfect dimensions: the industrial size 1200 x 1000 mm - and a box height of 1140 mm. Because of its height, the boxes fit easily 2-high in most lorries. Based on the positive experience with this large-volume box, the CB3 High is now offered in various versions. Custom-made versions with a funnel base, DUO variants and variants with a drop door are good examples of this. Because the box is intended as a durable load carrier with a long service life, the CB3 High is fitted with recesses for RFID transponders – for tracking & tracing. This makes the box traceable and turns the CB3 High into a smart box. This feature is also essential for the food industry. That is exactly what this large-volume box is perfectly suited for. Because the CB3 High stacks with stacking lugs on the corners, it is inter-stackable with (pool) boxes that are widely used in the food sector. In short, the CB3 High certainly lives up to what it represents: robustness, volume and durability. See for yourself and put it to the test.
Properties
- Food grade
Related products
-
83281810
Pallet box type CB3 - 1200 x 1000 x H 740 mm - closed - 3 runners - light grey
External dimensions (LxWxH)
1200 × 1000 × 740 mm
Internal dimensions (LxWxH)
1130 × 925 × 595 mm
View
-
83271890
CB3 High pallet box - 1200 x 1000 x H 1140 mm - 1000 liter - 9 feet - grey
External dimensions (LxWxH)
1200 × 1000 × 1140 mm
Internal dimensions (LxWxH)
1110 × 897 × 983 mm
View
-
83271890.ZW
Mobile CB3 High pallet box - 1200 x 1000 x H 1295 mm - 1000 liter - 4 swivel castors PU tread
External dimensions (LxWxH)
1200 × 1000 × 1295 mm
Internal dimensions (LxWxH)
1110 × 897 × 983 mm
View
-
83271810.UW.LZ
Pallet box with removable sidewall (custom-made) type CB3 High - 1200 x 1000 x H 1140 mm - closed - 3 pallet skids - grey
External dimensions (LxWxH)
1200 × 1000 × 1140 mm
Internal dimensions (LxWxH)
1110 × 897 × 983 mm
View
-
83271810.BD
Funnel base pallet box CB3 High - 1200 x 1000 mm - 850 liter - with slide valve 120 mm - 2 pallet runners - grey
External dimensions (LxWxH)
1200 × 1000 × 1140 mm
Internal dimensions (LxWxH)
1108 × 897 × 960 mm
View
-
83271810.KL.LZ
Pallet box with drop door type CB3 High - 1200 x 1000 x H 1140 mm - closed - 3 skids - grey
External dimensions (LxWxH)
1200 × 1000 × 1140 mm
Internal dimensions (LxWxH)
1110 × 897 × 983 mm
View
-
83271999
UN-approved pallet box CB3 High - 1200 x 1000 mm - UN code 11H2/X - grey
External dimensions (LxWxH)
1237 × 1036 × 1166 mm
Internal dimensions (LxWxH)
1108 × 897 × 983 mm
View
Customisation options
- Printing
- Cut-outs
- Welding
- Reinforcements
