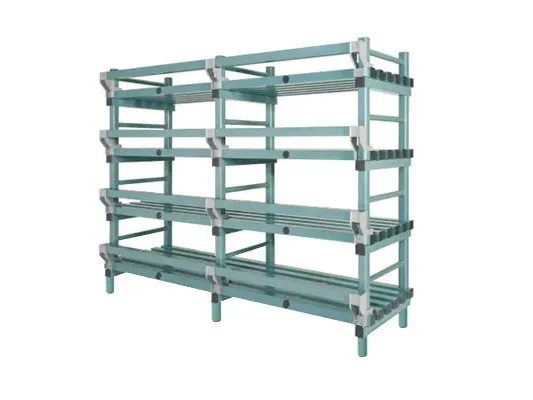

Plastic rack (Nautical rack) - 2000 x 500/570 x H 1750 mm

External dimensions ( L x W x H)
External dimensions ( L x W x H) 2000 × 570 × 1750 mm
Material PVC

Plastic Nautical shelving in standard dimensions (2000 x 500/570 x H 1750 mm). Constructed from robust and food-grade plastic.

Full description

Properties

External dimensions ( L x W x H) 2000 × 570 × 1750 mm
Material PVC
Article number KNR20050175
Temperature range -40°C to +80°C
Color Green
Foodgrade Yes
Copy properties

Key features

  • Nautical plastic racks: a hygienic and versatile storage for the shipping sector
  • Nautical racks are provided with storm rail holders, removable storm rails and adjustable feet (200 kg). Height of storm rail with respect to shelf: 120 mm. The shelf depth is increased by 70 mm because storm rails extend forwards.
  • The top shelf of a nautical rack is provided as standard with a top set with storm rail

About this product

Plastic Nautical shelving in standard dimensions (2000 x 500/570 x H 1750 mm). Constructed from robust and food-grade plastic. Nautical shelving is equipped with storm rail holders, removable storm rails, and adjustable feet. Comprised of 3 uprights and 4 shelves. Space between uprights: 2 x 900 mm. Space between shelves: 3 x 400 mm - free space underneath: 200 mm - standard with top set 150 mm. The load capacity is 200 kg per linear meter of shelf (i.e., per level). The shelving is 70 mm deeper than the shelf depth due to the forward protrusion of storm rails. Other sizes and configurations available upon request. Our Nautical shelving systems are highly hygienic and versatile storage solutions for the maritime sector.

Properties

  • Food grade
Behälter Transoplast Lager

Customisation options

  • Printing
  • Cut-outs
  • Welding
  • Reinforcements
