Key specifications
- External dimensions ( L x W x H) 2000 × 1200 × 150 mm
- Dynamic load capacity 1000 kg
- Material HDPE
- Article number 83320801.DUO
View all specifications Show fewer specifications
| External dimensions ( L x W x H) | 2000 × 1200 × 150 mm |
|---|---|
| Dynamic load capacity | 1000 kg |
| Material | HDPE |
| Article number | 83320801.DUO |
| Weight (kg) | 28 kg |
| Temperature range | -30°C to +40°C, briefly up to +90°C |
| Color | Grey |
| Foodgrade | Yes |
| Static load capacity | 5000 kg |
| Edge height | 7 mm |
Key features
- Large-format plastic pallet size 2000 x 1200 x H 150 mm
- Made from high-quality virgin HDPE, exceptionally impact-resistant and durable
- Suitable for food products
- The D3-DUO is based on the D3 pallet, with 7 mm rims all around (alternative: without rims)
- In this version, two D3 pallets are sustainably welded together
- The D3-DUO pallet is equipped with 5 pallet runners along the 1200mm side
- Extremely strong and robust, making it the ideal solution for large-format loads
- D3 pallet runners are chamfered on both sides for smooth handling with pallet trucks
- The raised rims around the D3 prevent the load from sliding off and prevent empty pallets from shifting against each other
- The D3 pallet is extra strong thanks to an angled connection between the pallet runners and the blocks
- This minimises breakage at these sensitive points
- The stated dynamic load is based on an evenly distributed load and a wide forklift tine position
About this product

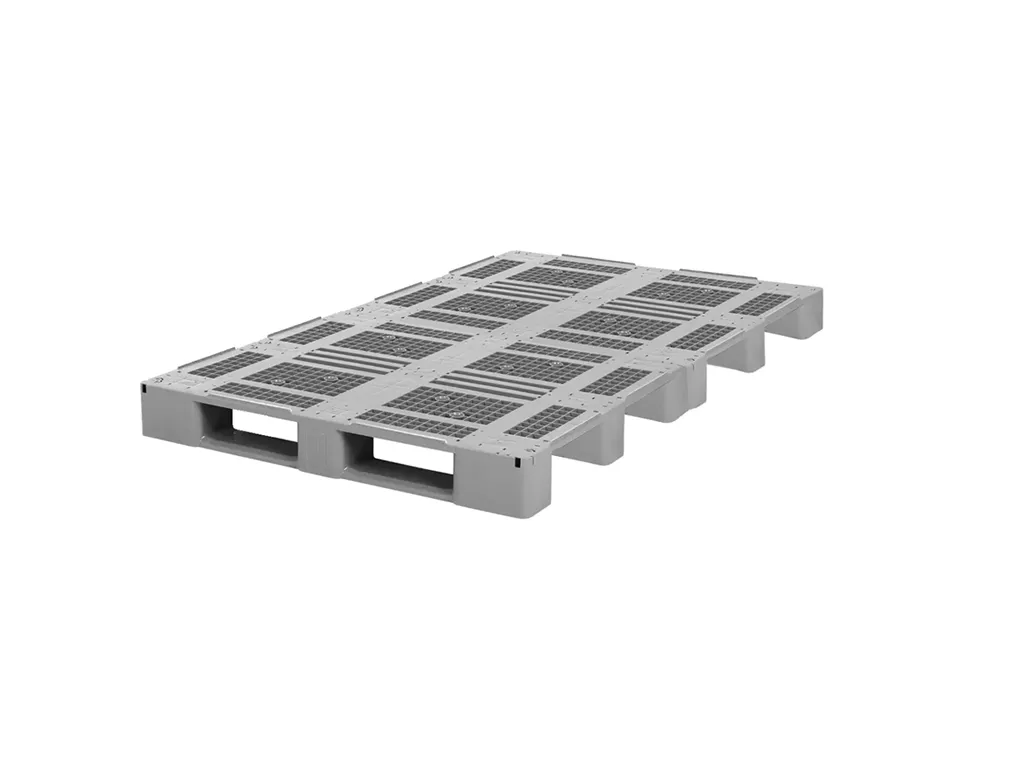

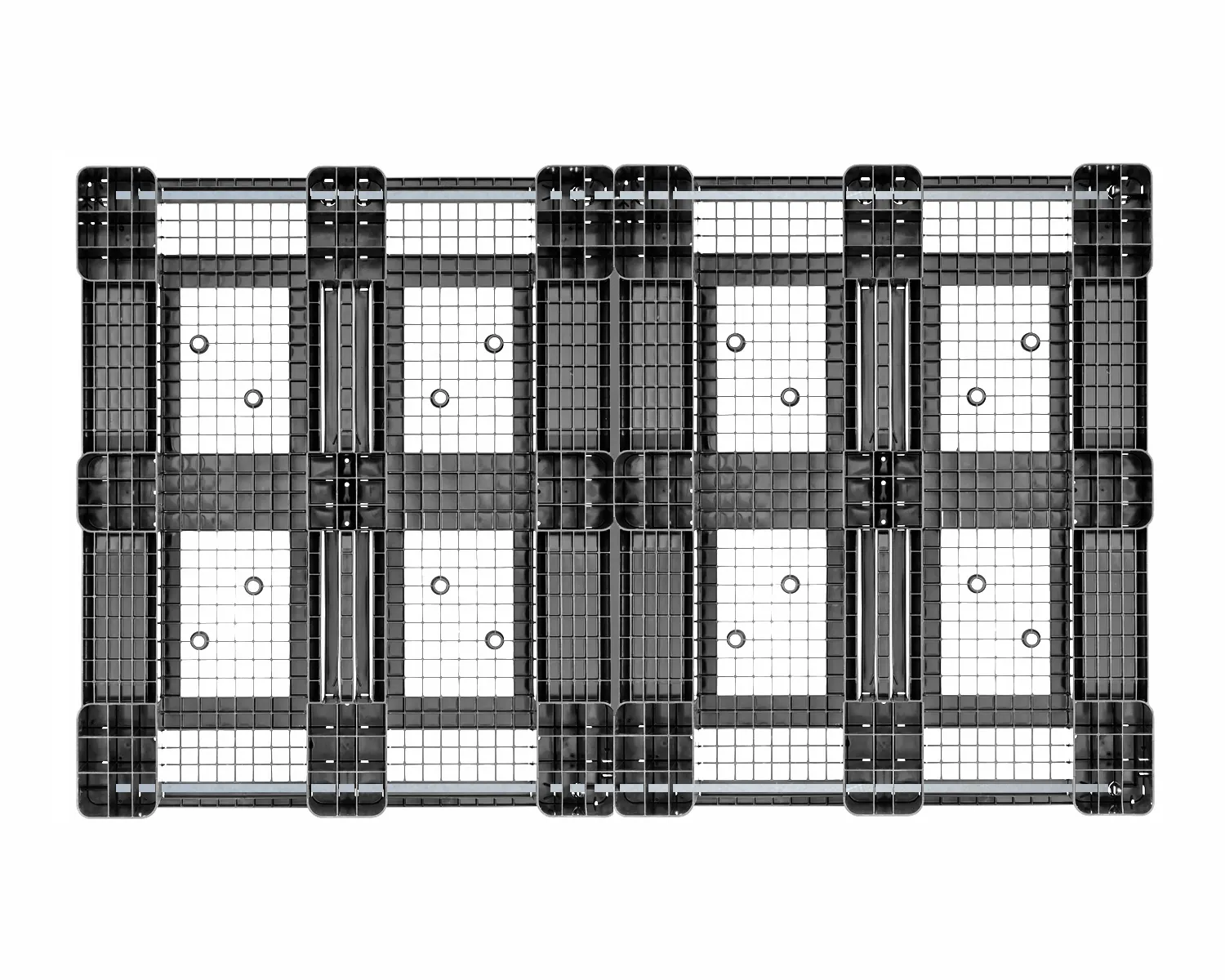

Plastic large-format pallet (2000 x 1200 x H 150 mm), type D3-DUO, made from high-quality virgin HDPE. Based on two pallets of type D3, which are sawn and then sustainably welded together. Equipped with 5 pallet runners longitudinally, underside with blocks and pallet runners open (ribbed). With 7 mm rims all around. Static load capacity is 5000 kg and dynamic load capacity 1000 kg. Maximum dynamic load of 1000 kg with evenly distributed load and a wide forklift tine position. Also available in a version without rims on the top deck. Various organisations use DUO pallets to their full satisfaction.
General
The dimensions of custom-made pallets are aligned with the customer’s requirements as much as possible. However, the existing pallet construction is decisive for the welding work. As a result, the achievable dimensions may deviate by a few centimetres.
Properties
- Food grade
Customisation options
- Printing
- Cut-outs
- Welding
- Reinforcements
