Foldable pallet box type MAGNUM – 800 x 600 mm – on 2 runners – with 2 drop doors – fully closed – dark grey

Name: Foldable pallet box type MAGNUM - 800 x 600 mm - on 2 runners - with 2 drop doors - fully closed - dark grey
Brand: Transoplast
SKU: 2640.610.540

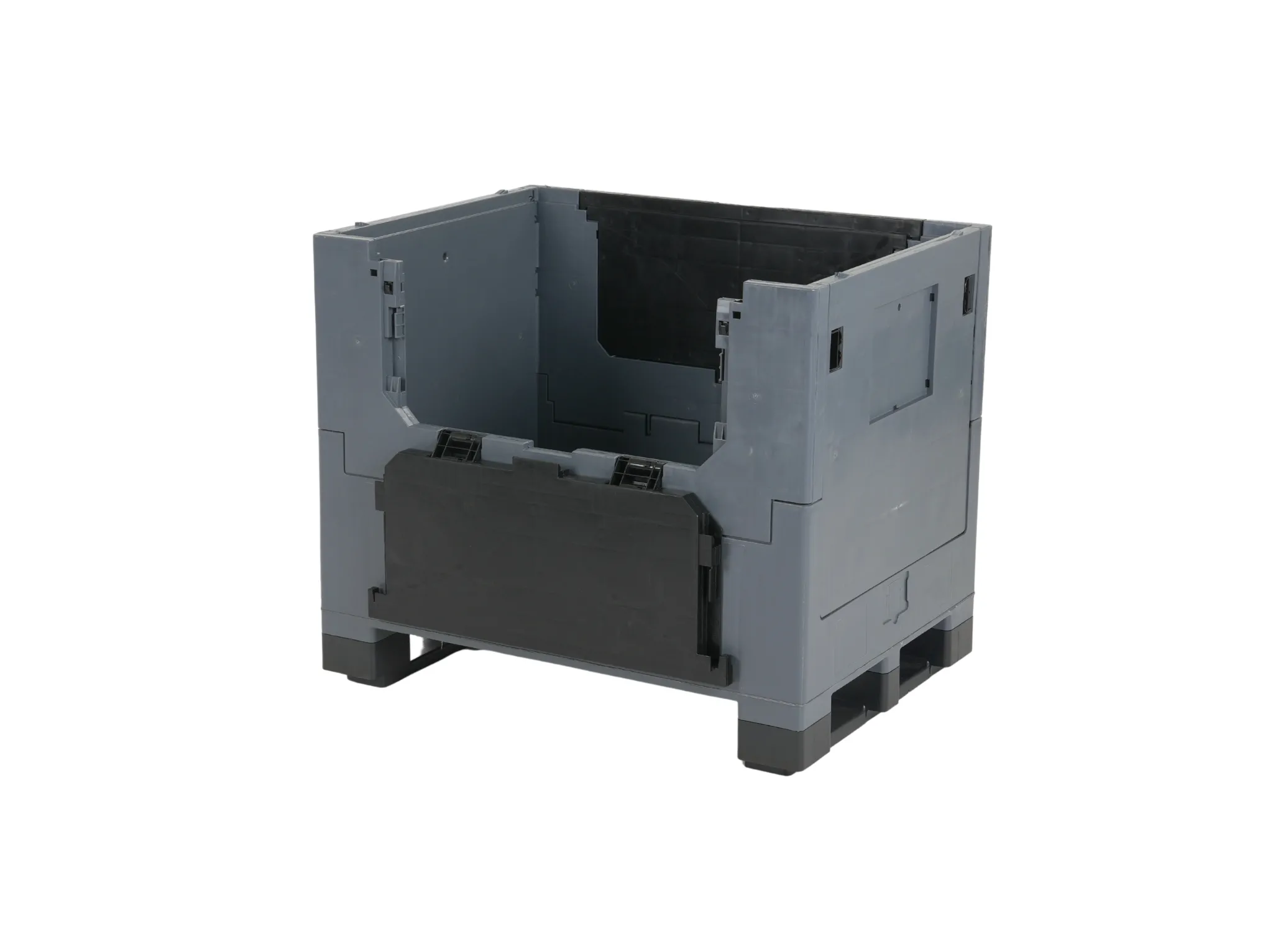

MAGNUM box - foldable plastic pallet box (800 x 600 x H 680 mm - 212 liter) with drop doors on both long sides - closed version.

Full description

Need printing?

Letters, numbers or logo

Configure

Would you prefer personal advice?

Our product advisors are happy to help you.

Product specifications

External dimensions ( L x W x H) 800 × 600 × 680 mm

Internal dimensions (L x W x H) 740 × 540 × 530 mm

Capacity 212 liter

Sidewalls Entirely smooth, closed, collapsible

Material PP

Article number 2640.610.540

Weight (kg) 18,5 kg

Temperature range -20°C to +40°C

Color Grey

Bottom Closed

European Article Number 7424911519575

Foodgrade No

Max. load capacity per box 250 kg

Max. static stacking load 500 kg

Quantity per pallet 12

Description

Our MAGNUM box is a foldable plastic pallet box in a mini 800 x 600 mm format. When folded, the plastic pallet box achieves space savings of up to 45%. This mini-format box is used as a transport box and in warehouse applications where small product quantities need to be easily accessible.

Product datasheet

Download

Properties

MAGNUM box - foldable plastic pallet box, dimensions 800 x 600 x H 680 mm.
Pallet base: With 2 runners positioned crosswise.
Version: Fully closed, with drainage holes in the base.

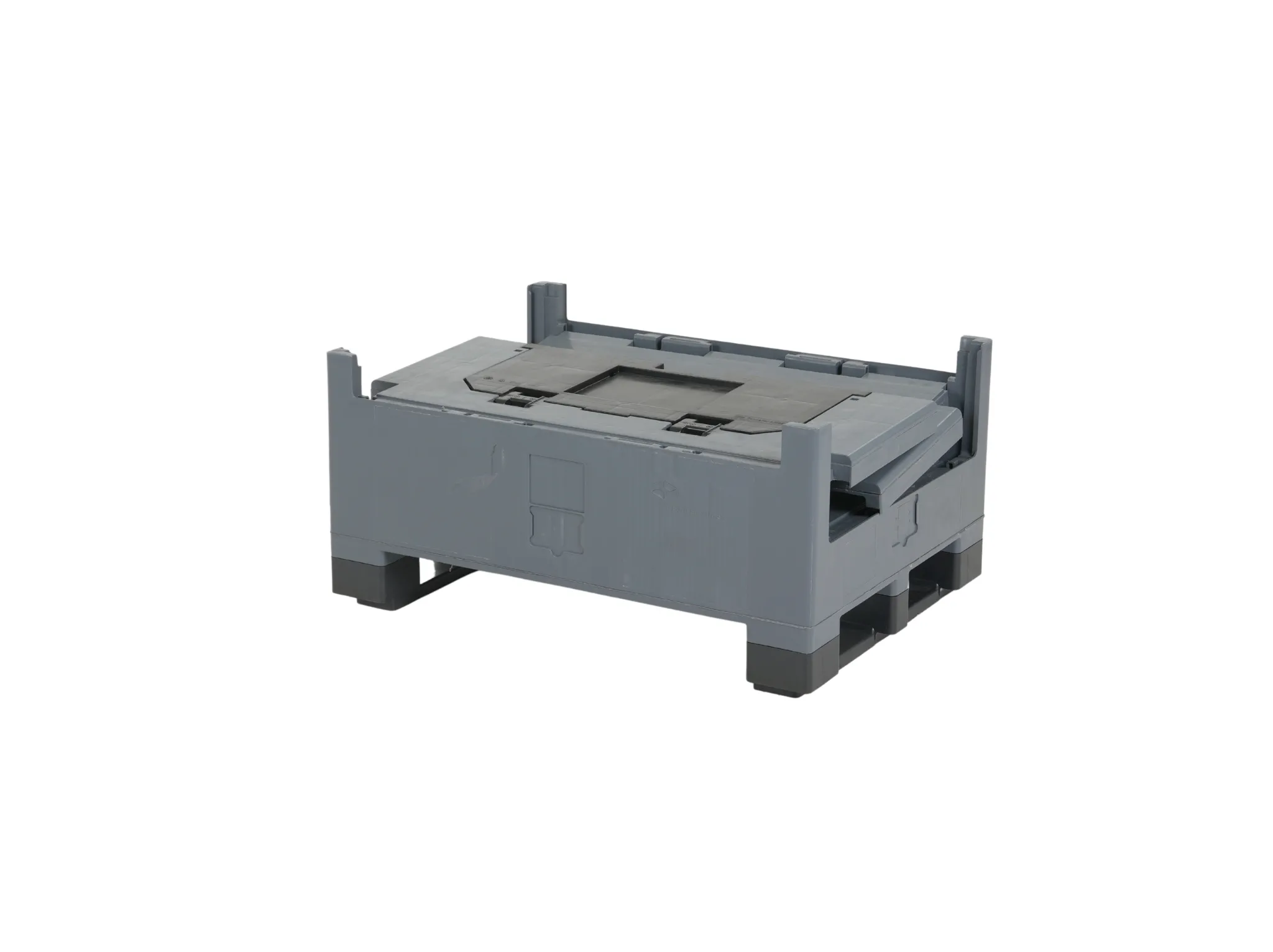

Folded height: 393 mm - 373 mm when stacked.
Space saving: Up to 45% space saving when folded.
Wall folding sequence: First fold both short sides.
Drop doors: Hinged drop door on both long sides, fully closed version.
Label holder: Label holder on one door.
Door openings (long sides): 510 x H 260 mm (both long sides).

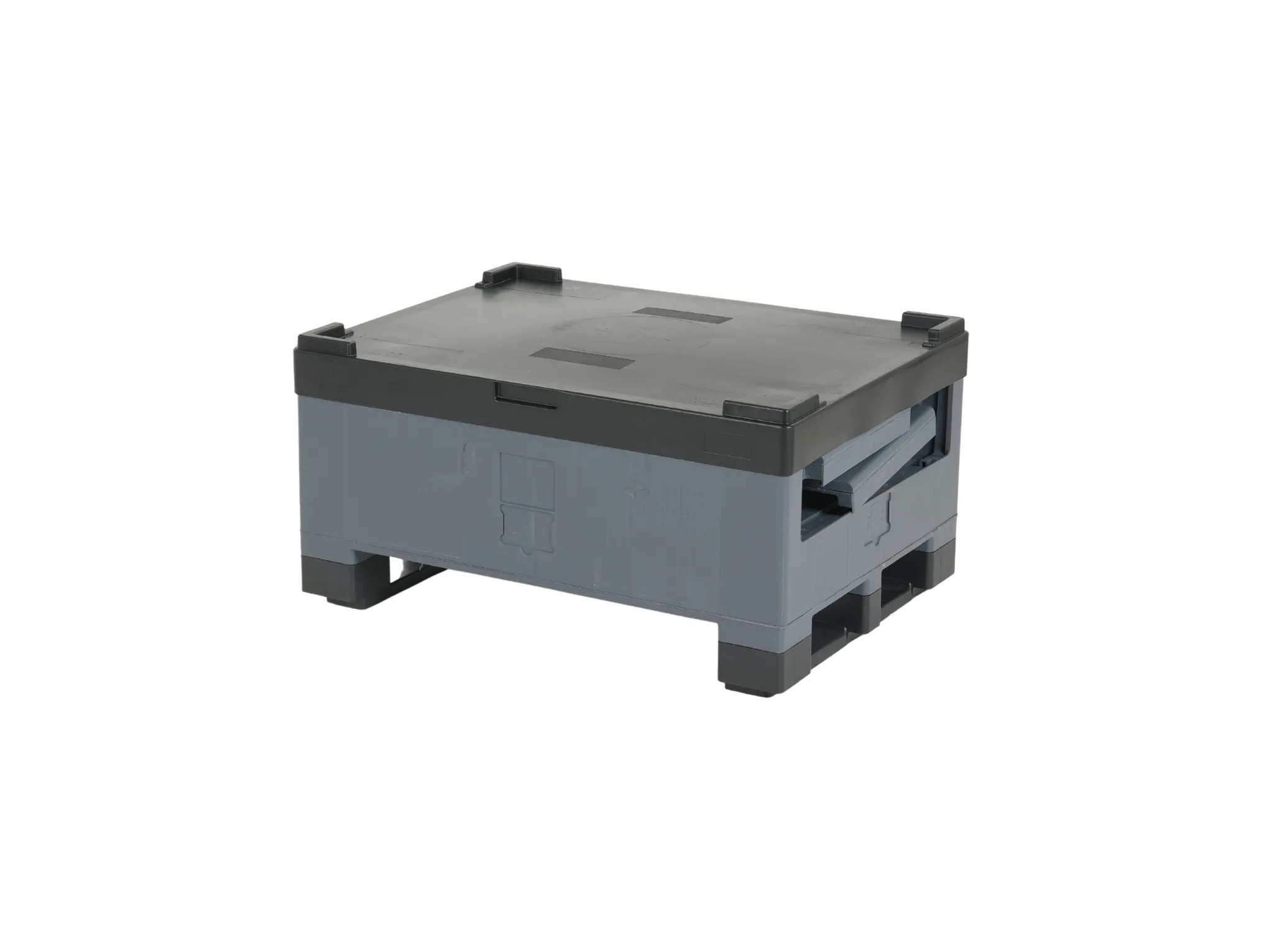

Stacking: Also stackable with a matching lid.
