Industrial pallet E3 - 1200 x 1000 mm - with rims - steel reinforced

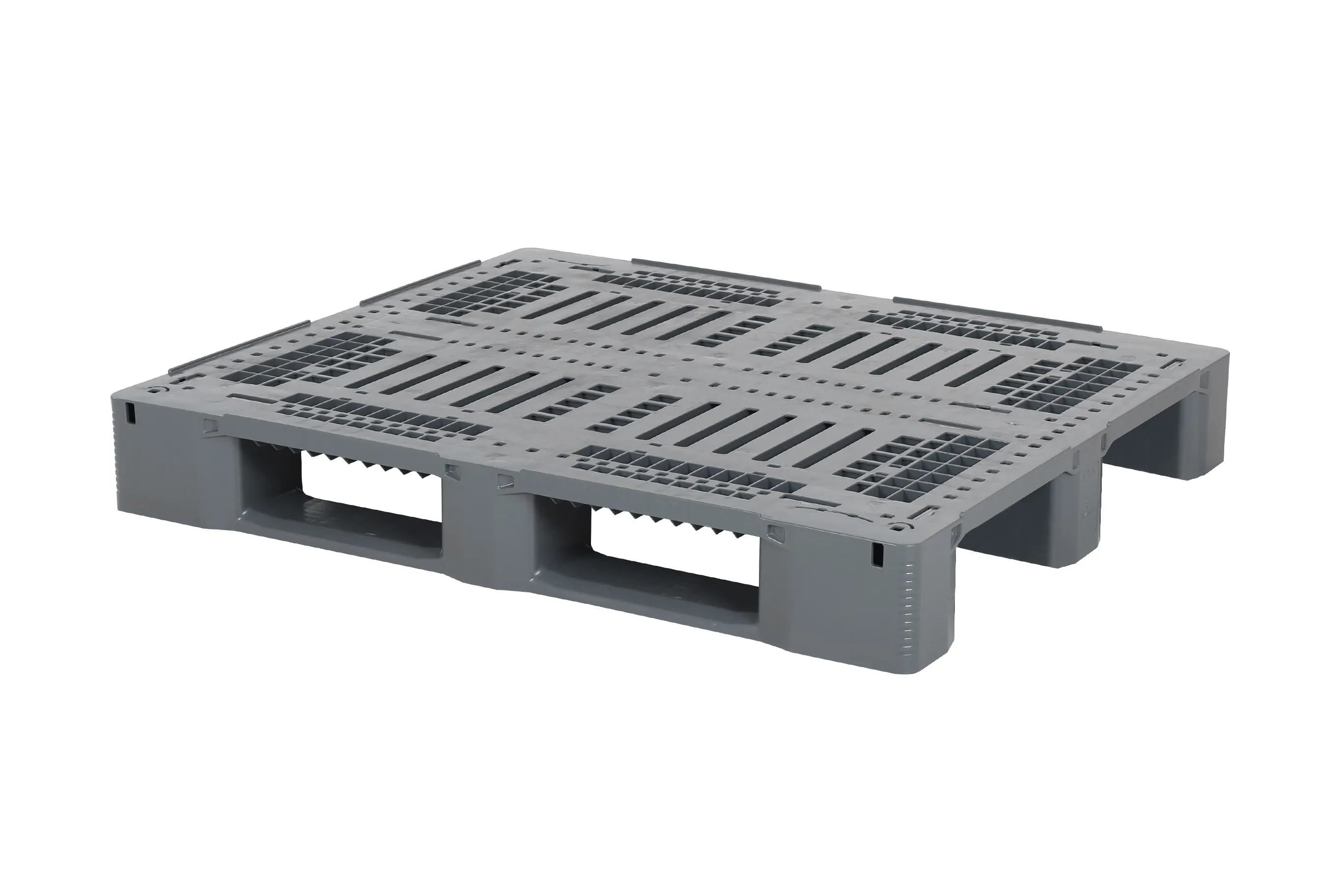

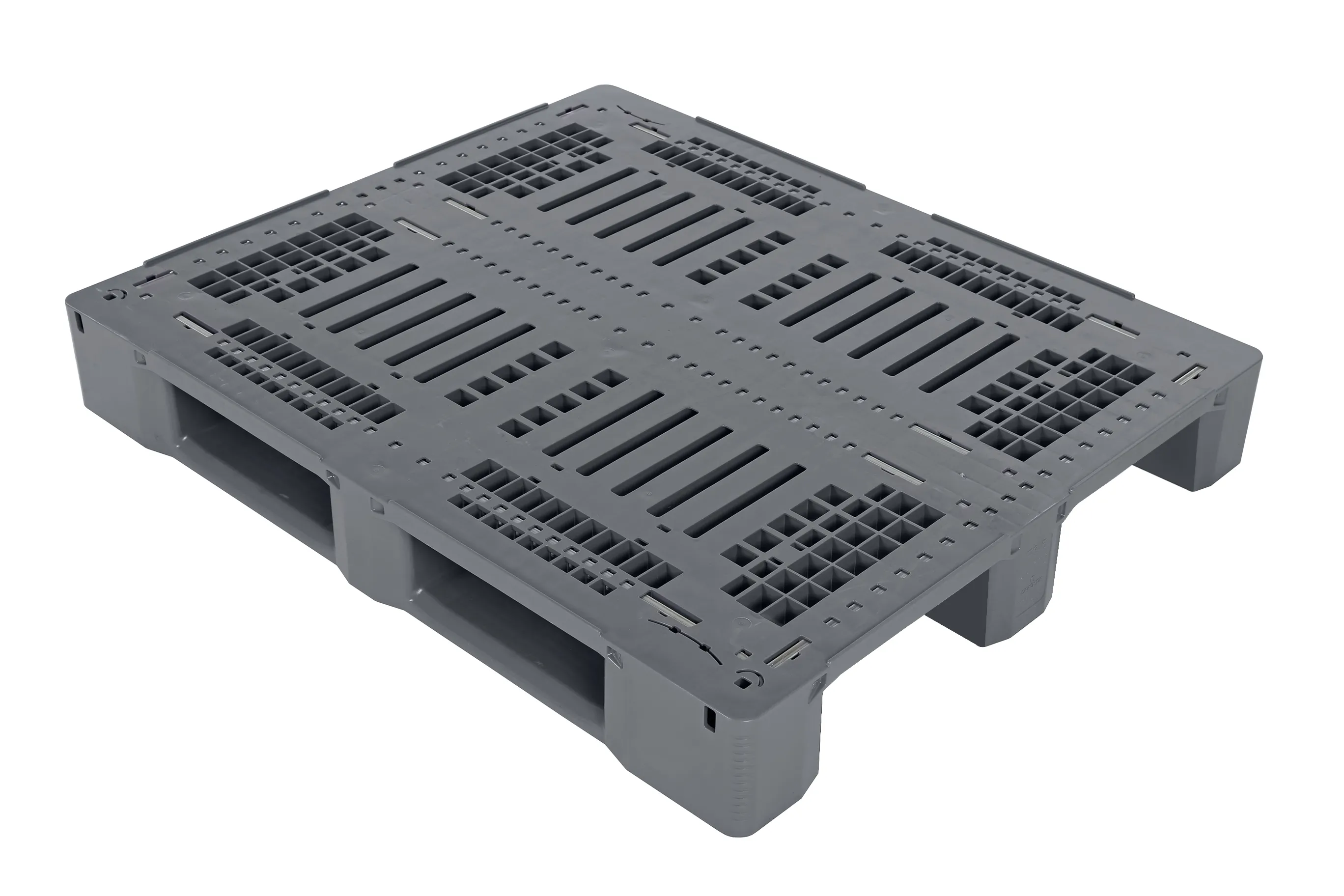

Industrial pallet / block pallet type E3 (1200 x 1000 x H 160 mm) – suitable for foodstuffs. Equipped with 3 pallet runners (in longitudinal direction), open bottom pallet runners and blocks (ribbed).
Properties

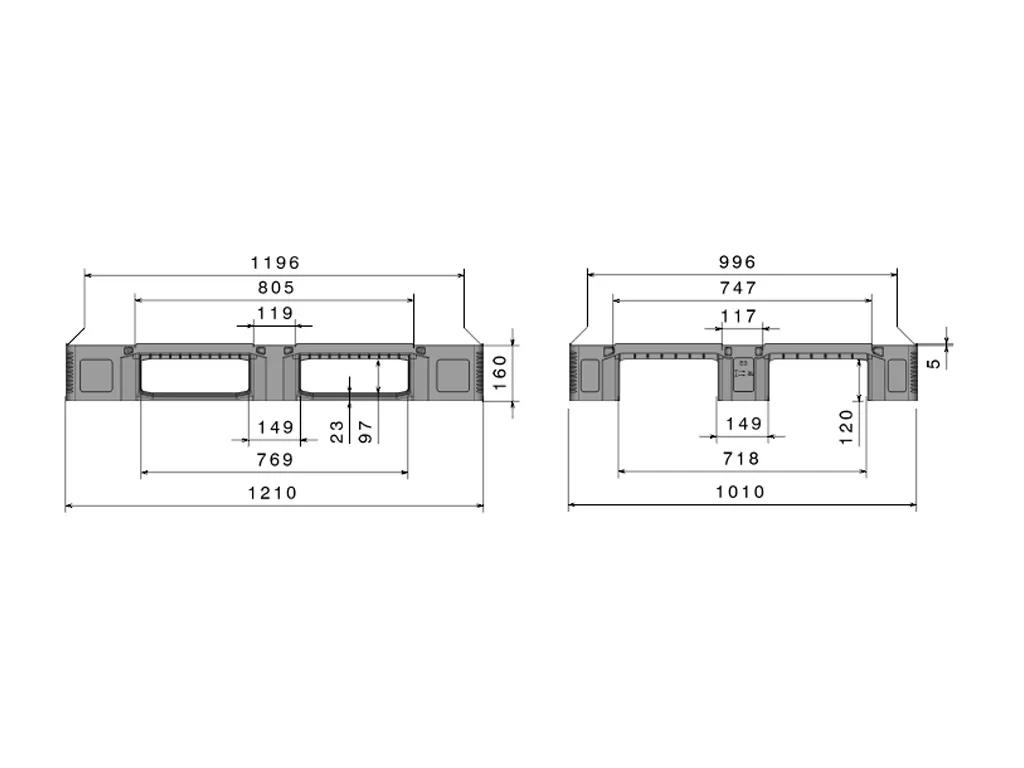

| External dimensions ( L x W x H) | 1200 × 1000 × 160 mm |
|---|---|
| Dynamic load capacity | 1500 kg |
| Material | HDPE |
| Article number | 83525861 |
| Weight (kg) | 23,5 kg |
| Temperature range | -30°C to +40°C, briefly up to +90°C |
| Color | Grey |
| Foodgrade | Yes |
| Static load capacity | 7500 kg |
| Edge height | 5 mm |
| Load capacity in racks | 1400 |
| Quantity per pallet | 15 |
Key features
- Raised rims around the E3 prevent the load sliding off and mutual sliding of empty pallets

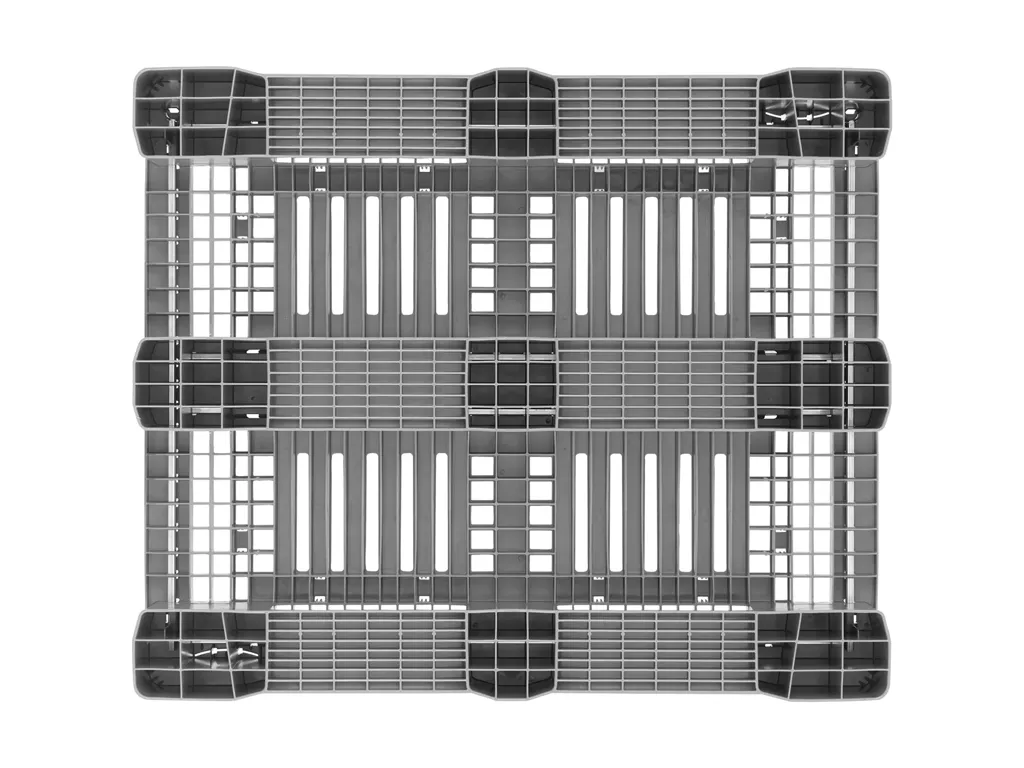

- E3 with three runners (lengthwise), underside of runners open (ribbed)
- The pallet deck is equipped with 6 integrated metal profiles: 4 longitudinal and 2 transverse profiles
- E3 is extra strong due to oblique connection between the runners and the chocks

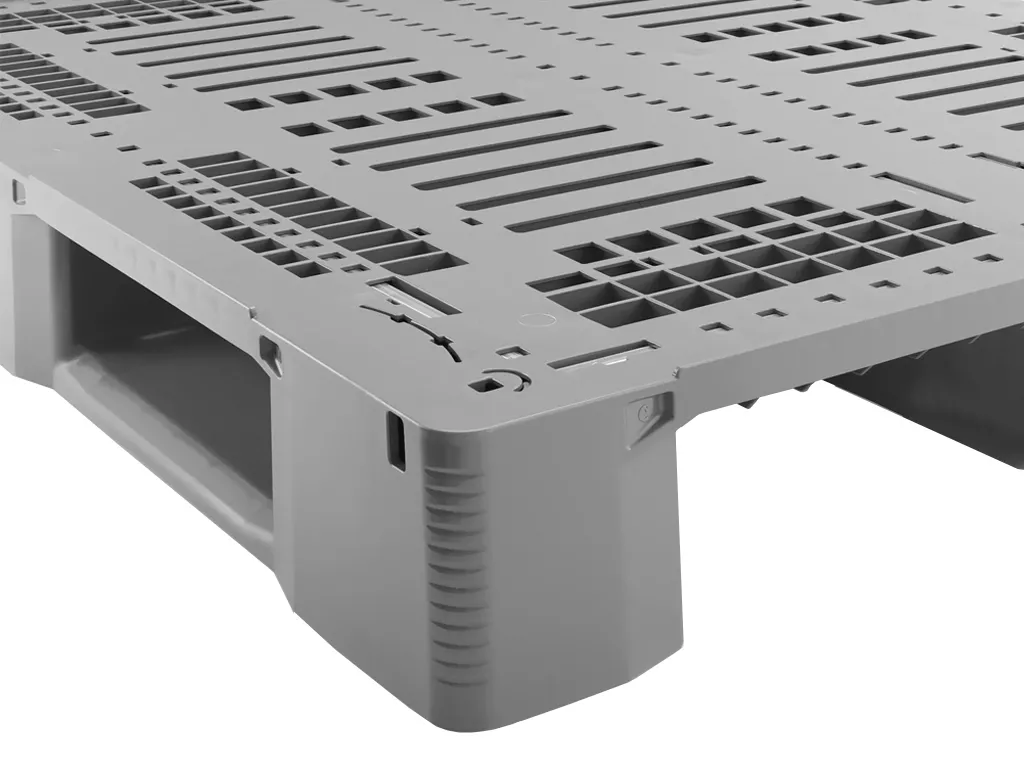

- Integrated slot in the upper deck for the use of RFID transponders
- Up to 1400 kg load capacity in high rack.
- Option: Version without rim or as special production with rim 7 mm or 22 mm (> 500 pcs.).

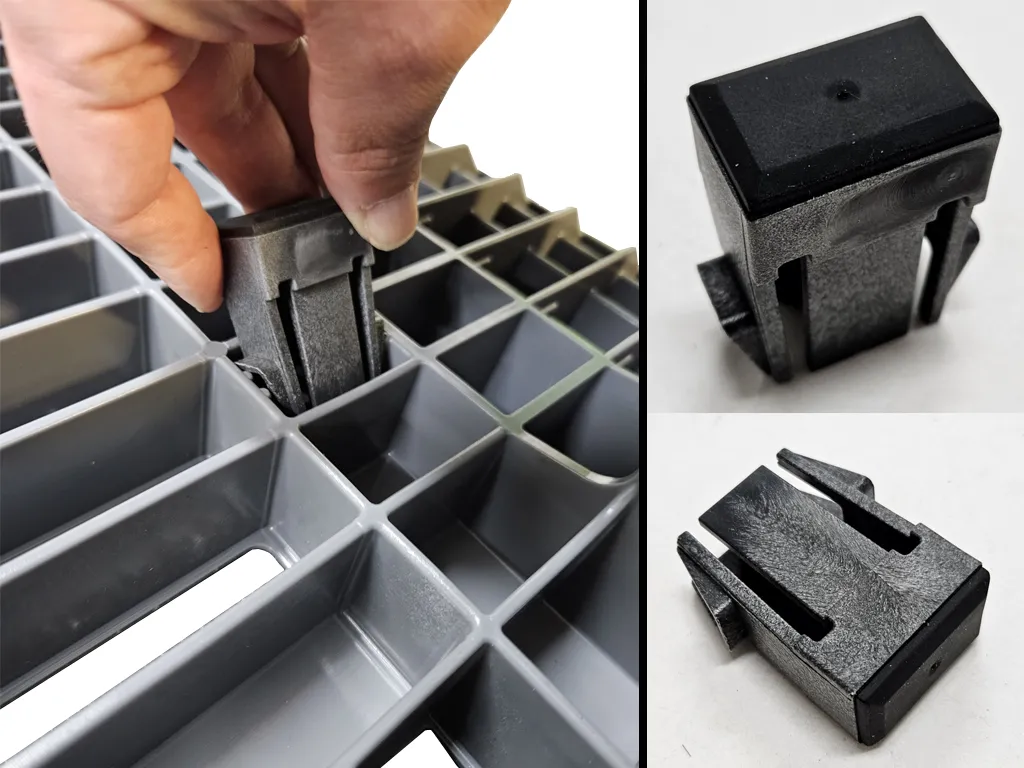

- Option: Retrofittable Palgrip anti-slip clips on the underside of the deck (12 pcs.)
About this product
Industrial pallet / block pallet type E3 (1200 x 1000 x H 160 mm) - suitable for foodstuffs. Equipped with 3 pallet runners (in longitudinal direction), open bottom pallet runners and blocks (ribbed).
Properties
- Food grade
