83320200

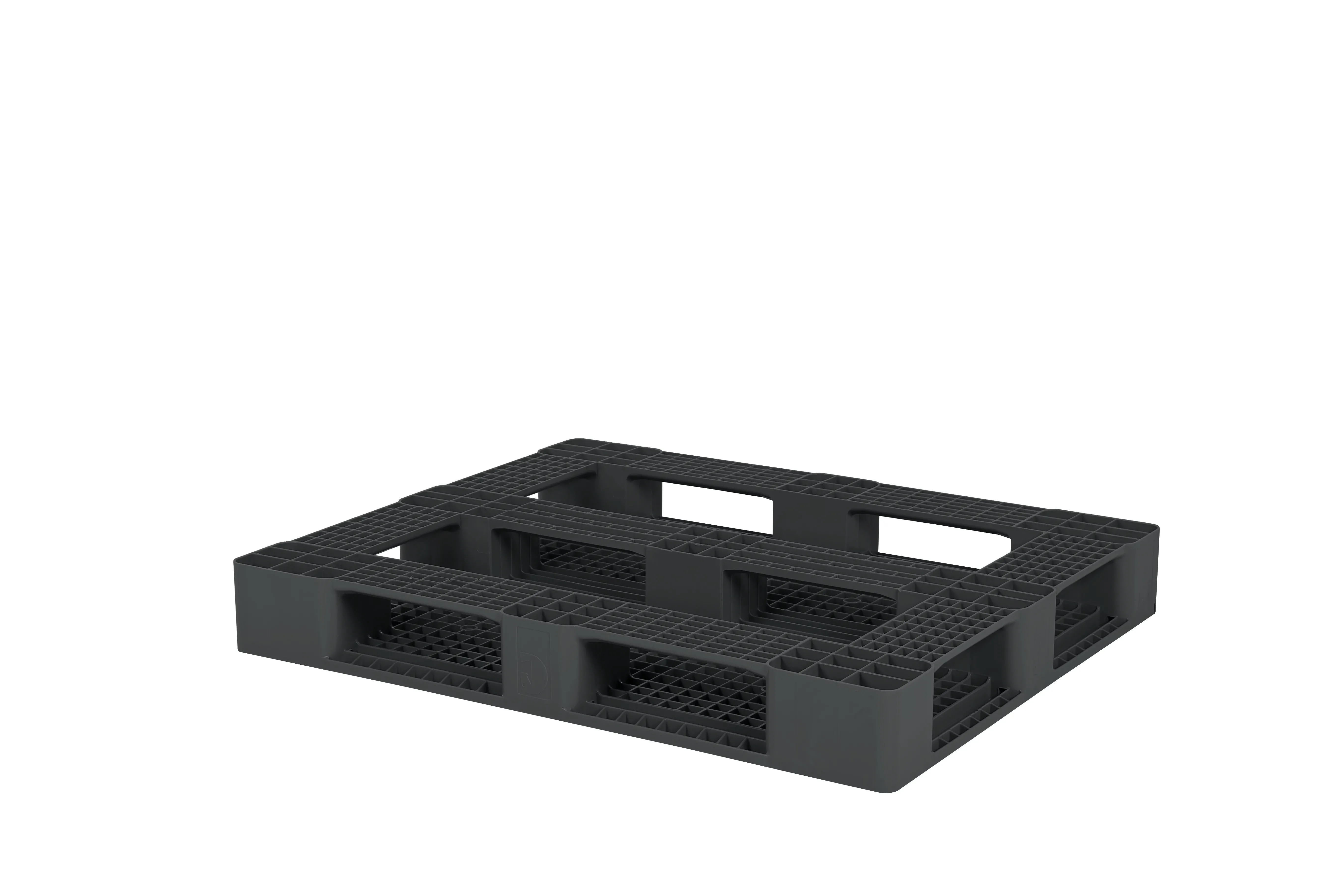

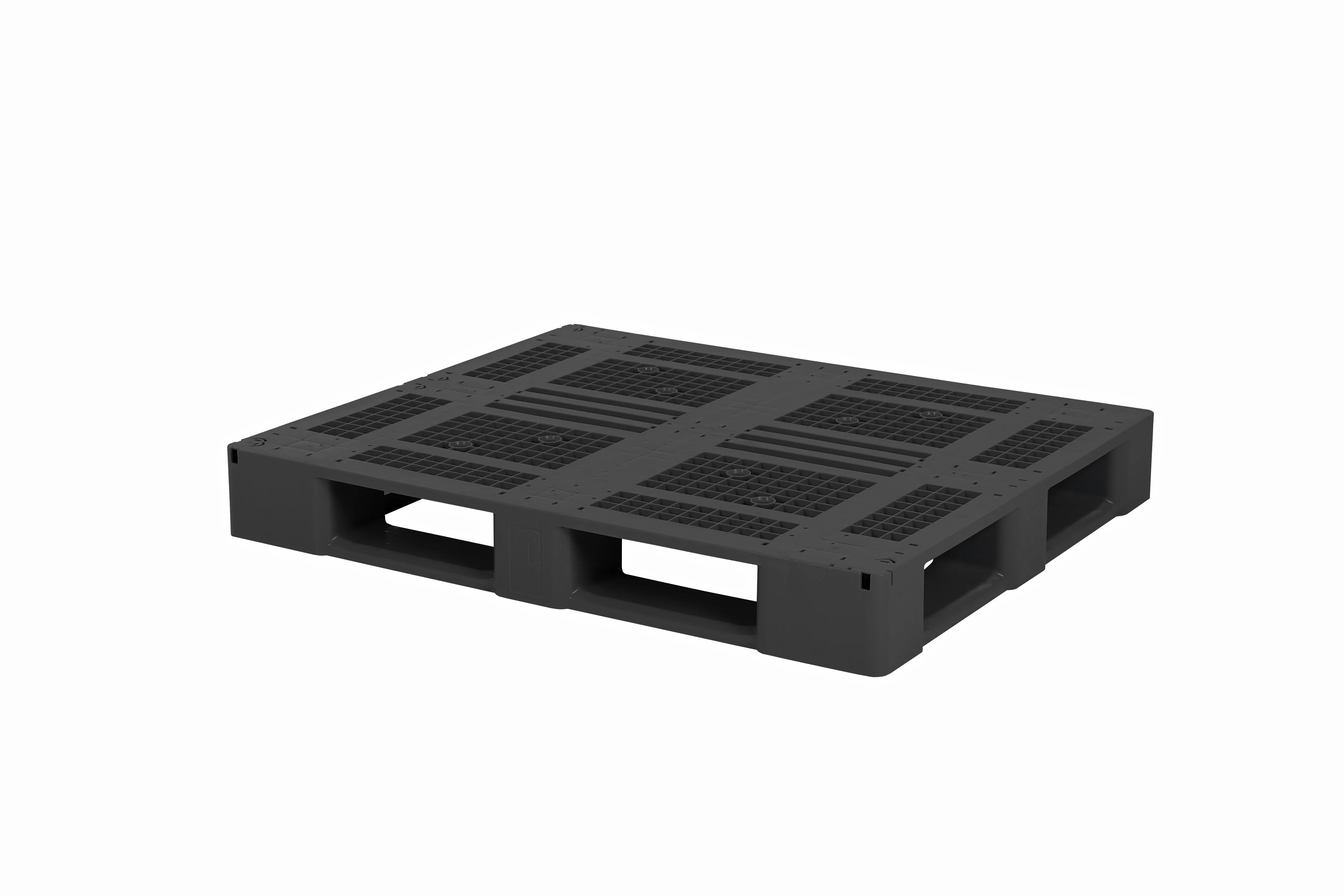

Industrial pallet D3-5 ECO – 1200 x 1000 mm – with 5 skids – without rims – black

Industrial pallet / ISO pallet type D3-5 ECO (1200 × 1000 × H 150 mm) made from ECO regranulate. Equipped with 5 skids - 3 longitudinal and 2 transverse.

Full description
Bedrukking

Need printing?

Letters, numbers or logo

Configure

0,00 per piece(0,00 Incl. VAT)

Request a quote

Would you prefer personal advice?

Our product advisors are happy to help you.

Contact us

Product specifications

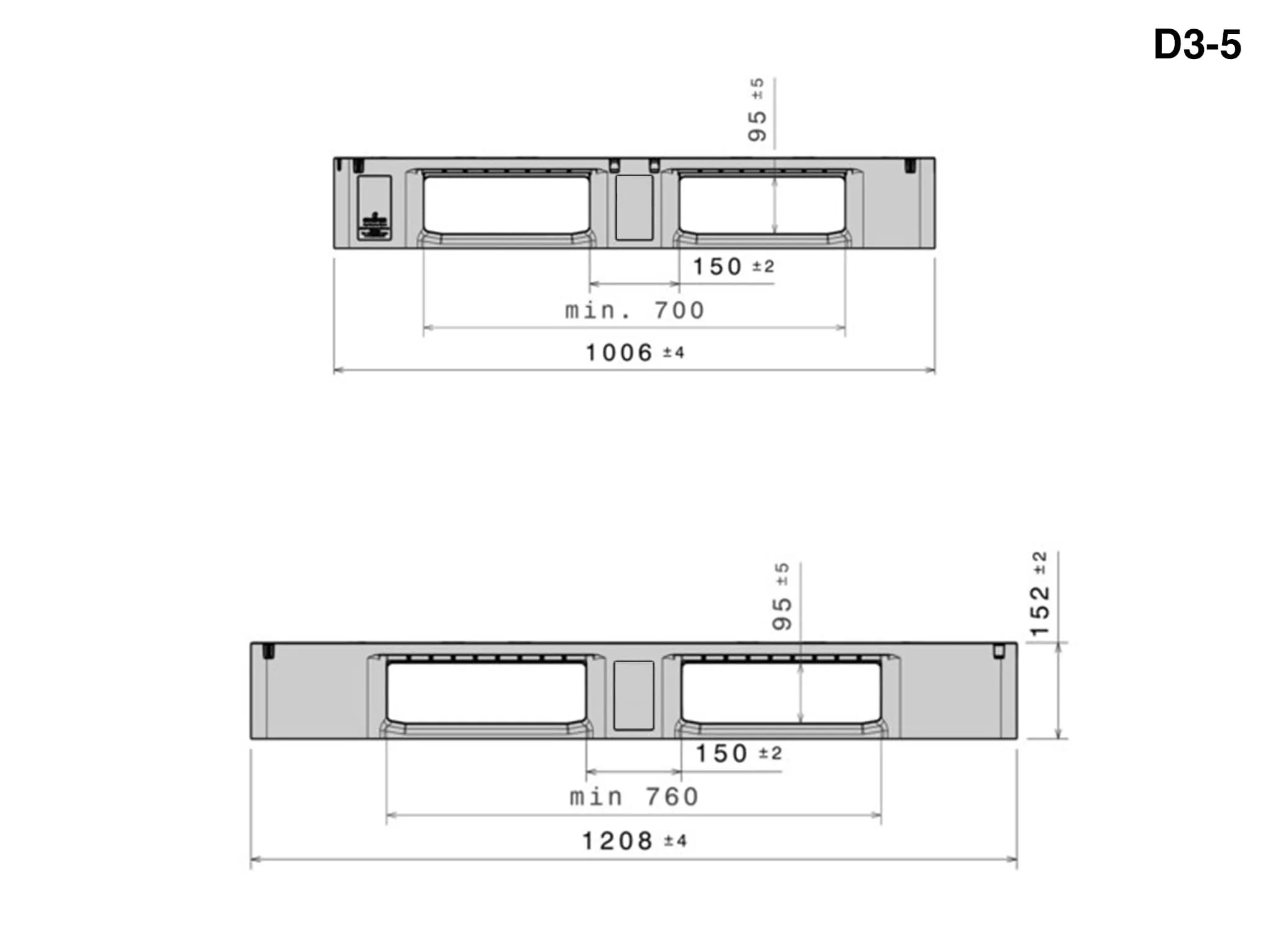

External dimensions ( L x W x H) 1200 × 1000 × 150 mm
Dynamic load capacity 1000 kg
Material Recycled ECO-HDPE
Article number 83320200
Weight (kg) 15 kg
Temperature range -30°C to +40°C, briefly up to +90°C
Color Black
Foodgrade No
Static load capacity 5000 kg
Load capacity in racks 400
Quantity per pallet 16

Description

Our D3-5 ECO plastic industrial pallet is a true all-rounder and is therefore widely used across logistics. The pallet has a low tare weight, making it easy to handle. With reinforcement profiles, it can be upgraded from a medium-duty pallet to a true racking pallet. Both non-food businesses and the retail sector use this pallet successfully.

This D3-5 ECO variant is supplied without rims. When goods are pushed onto or off the pallet mechanically, raised rims can be a hindrance. That is why we also supply the D3-5 ECO without rims. For centring empty pallets without rims when stacked, our D3-5 pallets can be equipped with pop-ups. This must be specified during production or when ordering.

In addition, the D3-5 pallet is equipped with 5 skids. This allows block stacking of loaded pallets. For this type of stacking, an even and stable support remains essential.

The D3-5 pallet is additionally reinforced at several sensitive points, such as the transitions from the blocks to the skids and to the top deck. Made from high-quality HDPE ECO regranulate - for an attractive price and sustainable use.

Product datasheet

Download

Properties

  • Industrial pallet type D3-5 ECO (1200 x 1000 x H 150 mm) without rims. Optional pop-ups for centring empty pallets when stacked.
  • Strong medium-duty pallet with low tare weight - easy to handle
  • Equipped with 5 skids (3 longitudinal, 2 transverse) - for stability and block stacking of loaded pallets

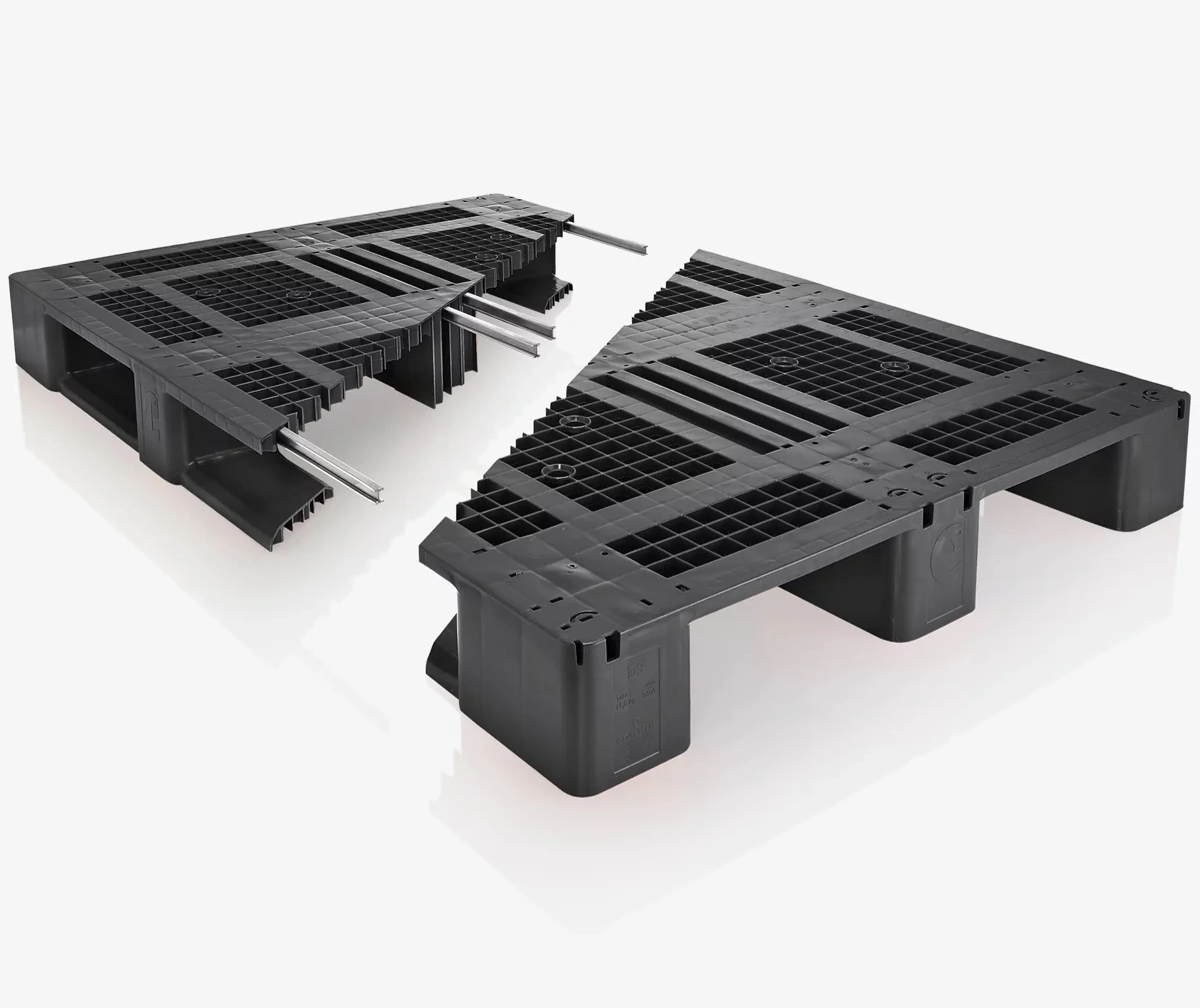

  • Racking capacity: 400 kg. Can be significantly increased using corrosion-resistant reinforcement profiles (also retrofittable)
  • after fitting 3 longitudinal inserts: 1000 kg
  • after fitting 4 longitudinal inserts: 1250 kg
  • Underside blocks and skids open with reinforcing ribs
  • Extra strong thanks to the angled connection between blocks, skids and deck
  • Skids are chamfered on both sides for trouble-free handling
  • Made from high-quality ECO regranulate - high impact resistance and long service life
  • Suitable for packaged foodstuffs
  • The D3 ECO pallet is frequently used for custom-made plastic pallets - with or without reinforcement profiles in the deck
  • Marking, logos or numbering on request. Position by agreement
  • Options: pallet lid/pallet cover - pallet collars - QR codes and barcodes - RFID transponders - 22 mm rims on the deck - 22 mm rims along the deck - without rims (incl. pop-ups if required) - continuous anti-slip rubber strips (for top and underside of the deck)
