10.1388.C2.2

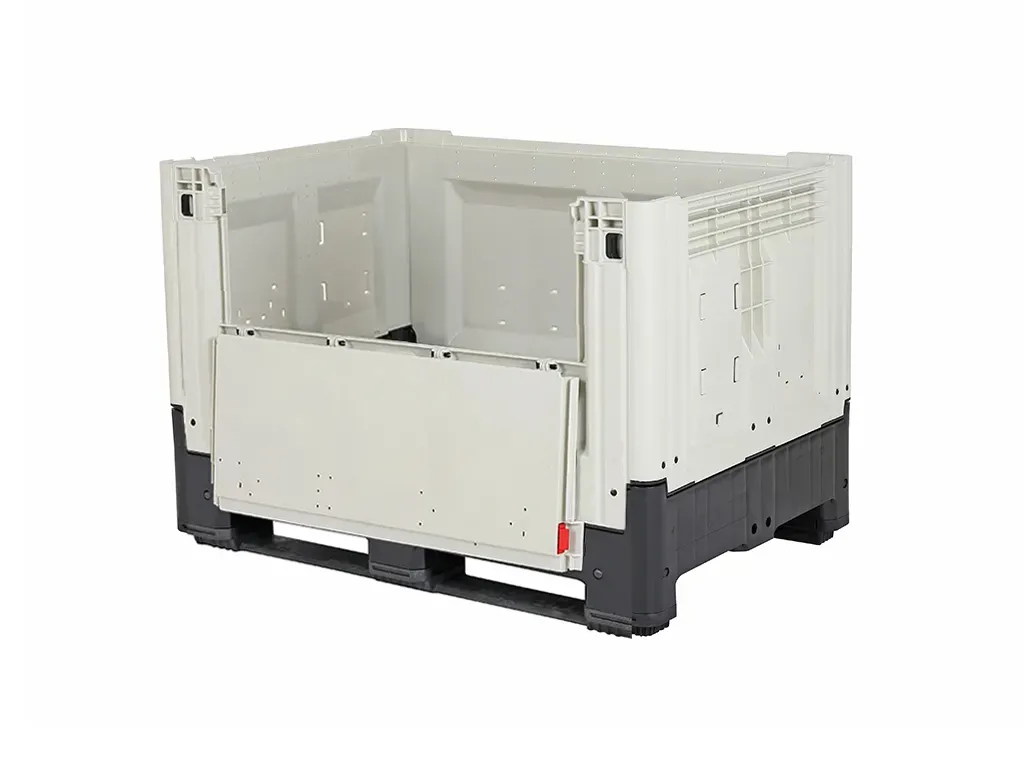

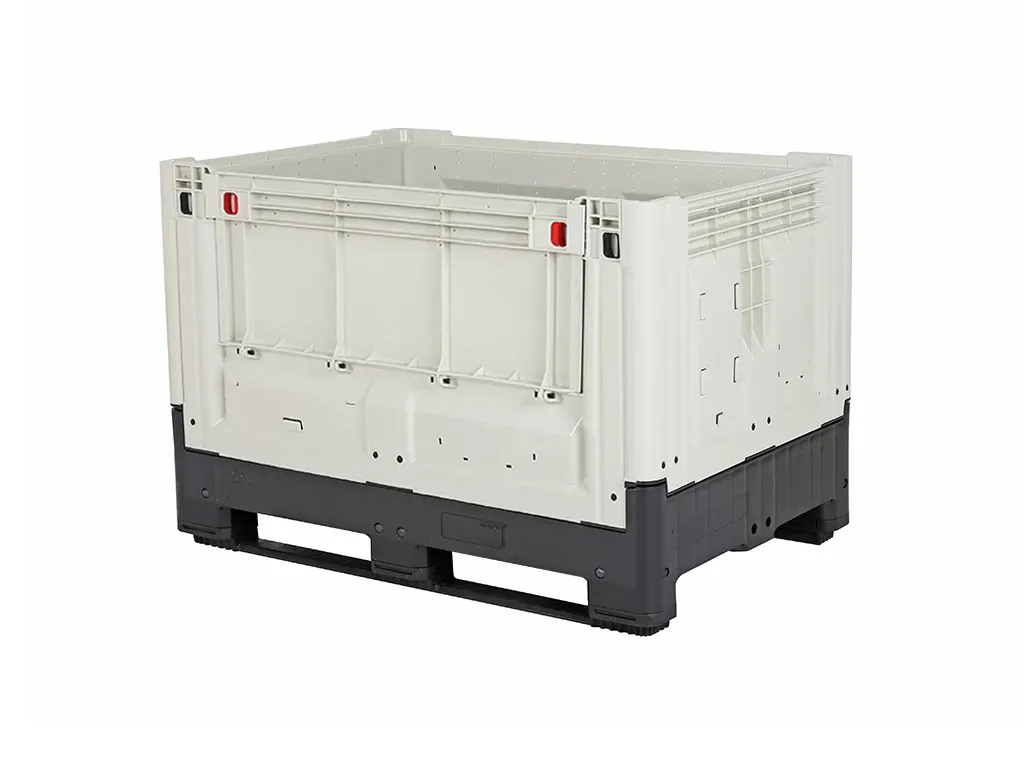

Foldable pallet box type Smartbox 1388.C2 – closed – 1200 × 800 mm – on 2 runners – with 1 drop door – ivory white/black

Smartbox - foldable plastic pallet box type 1388.C2 (1200 × 800 × H805 mm - 565 litre) with a hinged drop door on the long side - closed - on 2 pallet runners.

Full description
Bedrukking

Need printing?

Letters, numbers or logo

Configure

0,00 per piece(0,00 Incl. VAT)

Request a quote

Would you prefer personal advice?

Our product advisors are happy to help you.

Contact us

Product specifications

External dimensions ( L x W x H) 1200 × 800 × 805 mm
Internal dimensions (L x W x H) 1120 × 720 × 660 mm
Capacity 565 liter
Sidewalls Entirely smooth, closed, collapsible
Material HDPE
Article number 10.1388.C2.2
Weight (kg) 41 kg
Temperature range -30 °C to +40 °C, briefly up to +90
Color White
Bottom Closed bottom, resting on 2 skids
Foodgrade Yes
Max. load capacity per box 650 kg
Max. static stacking load 6350 kg
Max. dynamic stacking load 1500 kg
Quantity per pallet 8

Description

The foldable Smartbox type 1388.C2 is designed for efficient return logistics. When empty, the Smartbox can be folded down easily, reducing transport volume by more than 65%. The same benefits also apply when storing empty units, saving a significant amount of space - an important advantage since warehouse space is valuable. The Smartbox is widely used in industrial logistics thanks to its particularly robust design. The drop door ensures easy loading and emptying of the box. Because the Smartbox is made from virgin HDPE, direct contact with food is not a problem. This makes the food sector a well-known user of this Smartbox.

Product datasheet

Download

Properties

  • Smartbox foldable plastic pallet box type 1388.C2, size 1200 × 800 × H805 mm
  • Walls and base are closed
  • Pallet base fully closed and fitted with 2 pallet runners
  • Made from thick-walled plastic, making it particularly robust and impact-resistant
  • When folded, a volume reduction of 65% is achieved

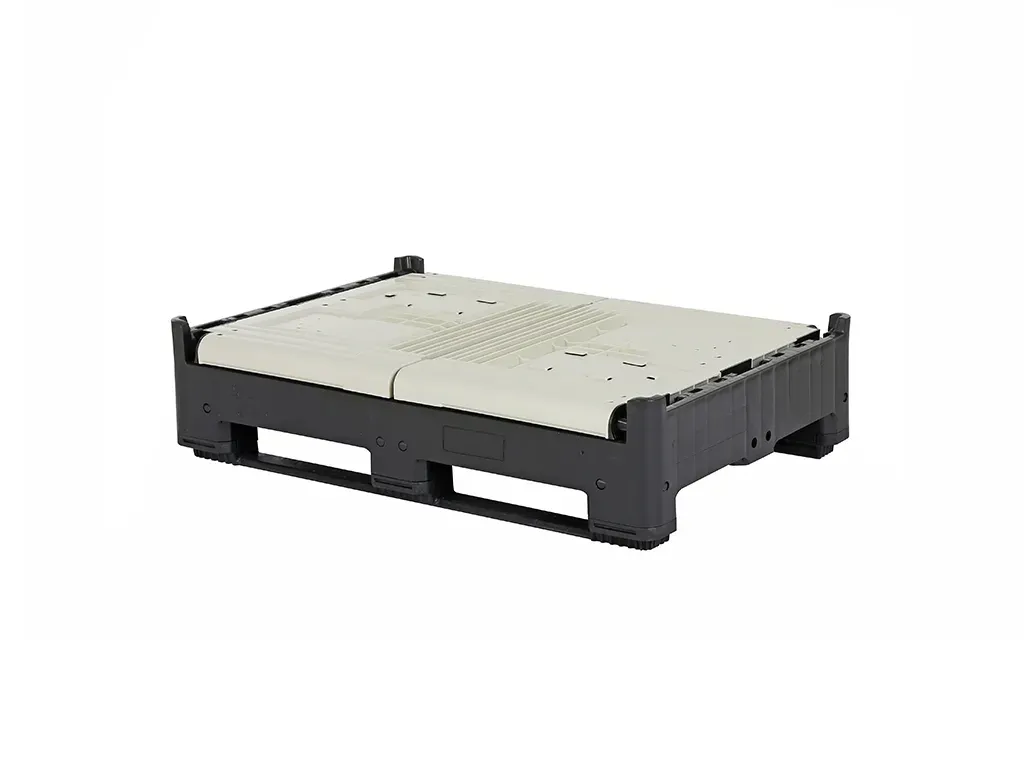

  • Folded height: 298 mm - stacked height: 268 mm
  • Equipped with a hinged drop door on one long side
  • Drop doors significantly reduce the lift-over height
  • Drop door opening (long side): 850 × H370 mm
  • Easy to repair in case of damage with separately available spare parts
  • At end of service life, the Smartbox is 100% recyclable
  • Options: lid - no drop doors - drop door short side - drop door long + short side - underside with 4 feet or 3 pallet runners - version with perforated walls
