10.1309.C2.2

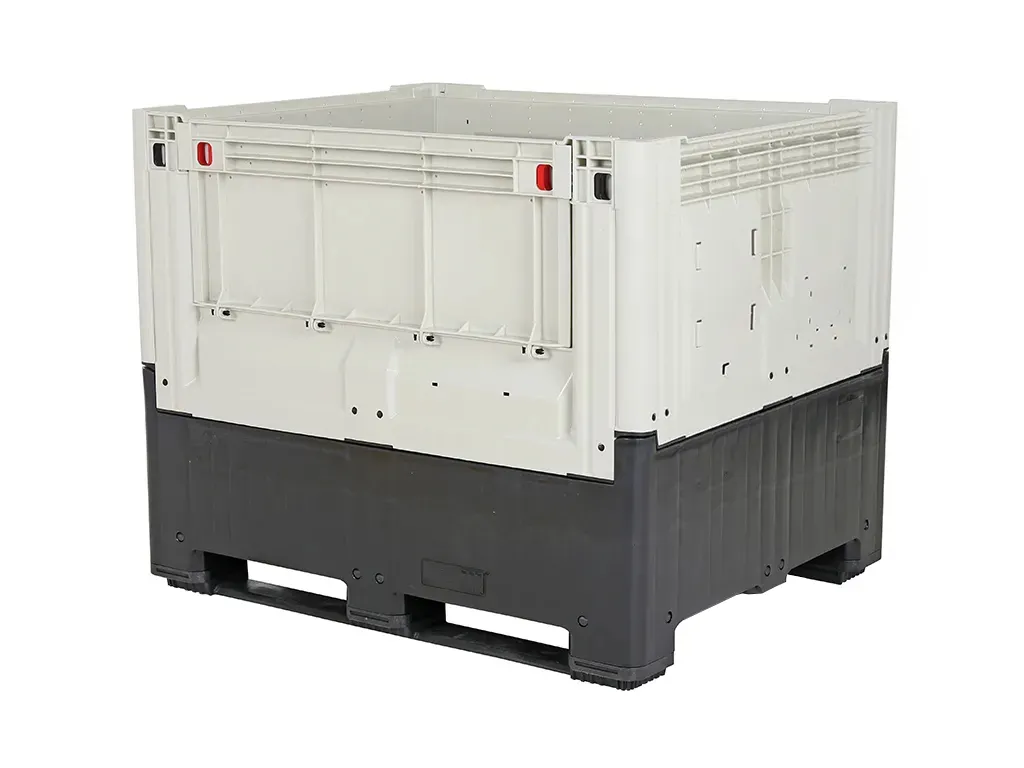

Foldable pallet box type Smartbox 1309.C2 – 1200 × 1000 mm – on 2 runners – with 1 drop door – ivorywhite / black

Smartbox - foldable plastic pallet box type 1309 C2 (1200 × 1000 × H978 mm - 905 litre) with 1 hinged drop door on the long side - on 2 pallet runners.

Full description
Bedrukking

Need printing?

Letters, numbers or logo

Configure

0,00 per piece(0,00 Incl. VAT)

Request a quote

Would you prefer personal advice?

Our product advisors are happy to help you.

Contact us

Product specifications

External dimensions ( L x W x H) 1200 × 1000 × 978 mm
Internal dimensions (L x W x H) 1120 × 920 × 833 mm
Capacity 905 liter
Sidewalls Entirely smooth, closed, collapsible
Material HDPE
Article number 10.1309.C2.2
Weight (kg) 60,5 kg
Temperature range -30 °C to +40 °C, briefly up to +90
Color White
Bottom Closed bottom, resting on 3 skids
Foodgrade Yes
Max. load capacity per box 850 kg
Max. static stacking load 6150 kg
Max. dynamic stacking load 850 kg
Quantity per pallet 5

Description

The foldable Smartbox type 1309.C2 is designed for efficient return logistics. When empty, the Smartbox can be folded down easily, reducing transport volume by more than 50%. The same benefits also apply when storing empty units, saving a significant amount of space - an important advantage since warehouse space is valuable. The Smartbox is widely used in industrial logistics thanks to its particularly robust design. The drop door ensures easy loading and emptying of the box. Because the Smartbox is made from virgin HDPE, direct contact with food is not a problem. This makes the food sector a well-known user of the Smartbox.

Product datasheet

Download

Properties

  • Smartbox foldable plastic pallet box, size 1200 × 1000 × H978 mm
  • The pallet base is closed and equipped with drainage holes.
  • Fitted with 2 pallet runners.
  • Made from thick-walled plastic, making it particularly robust and impact-resistant

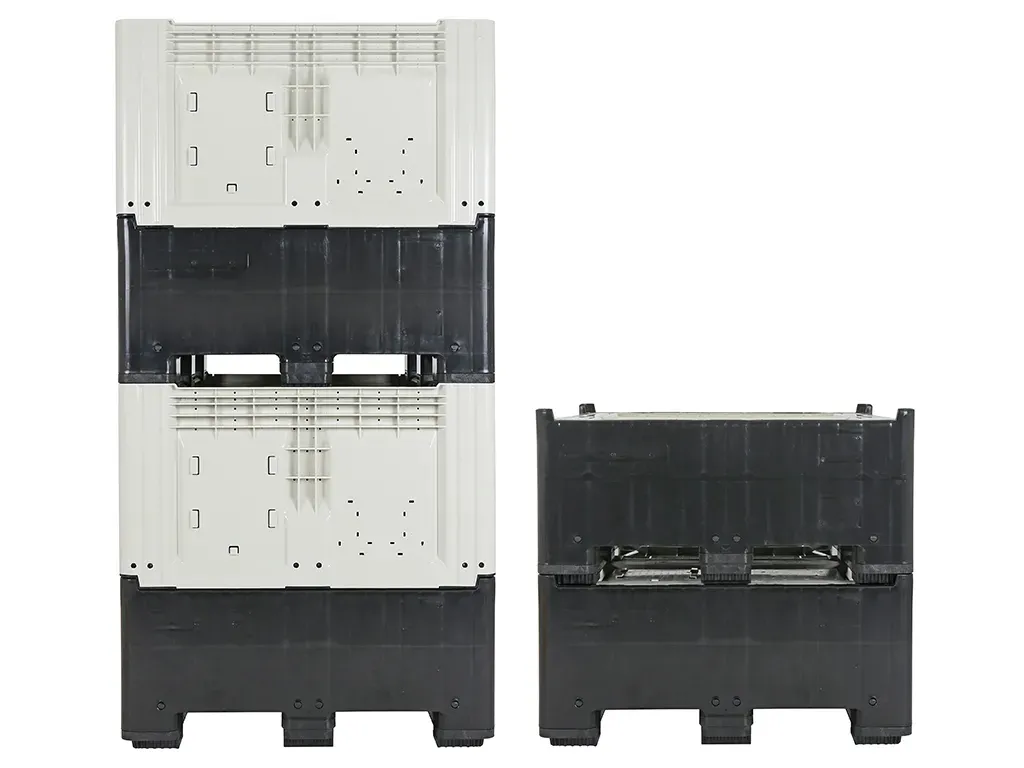

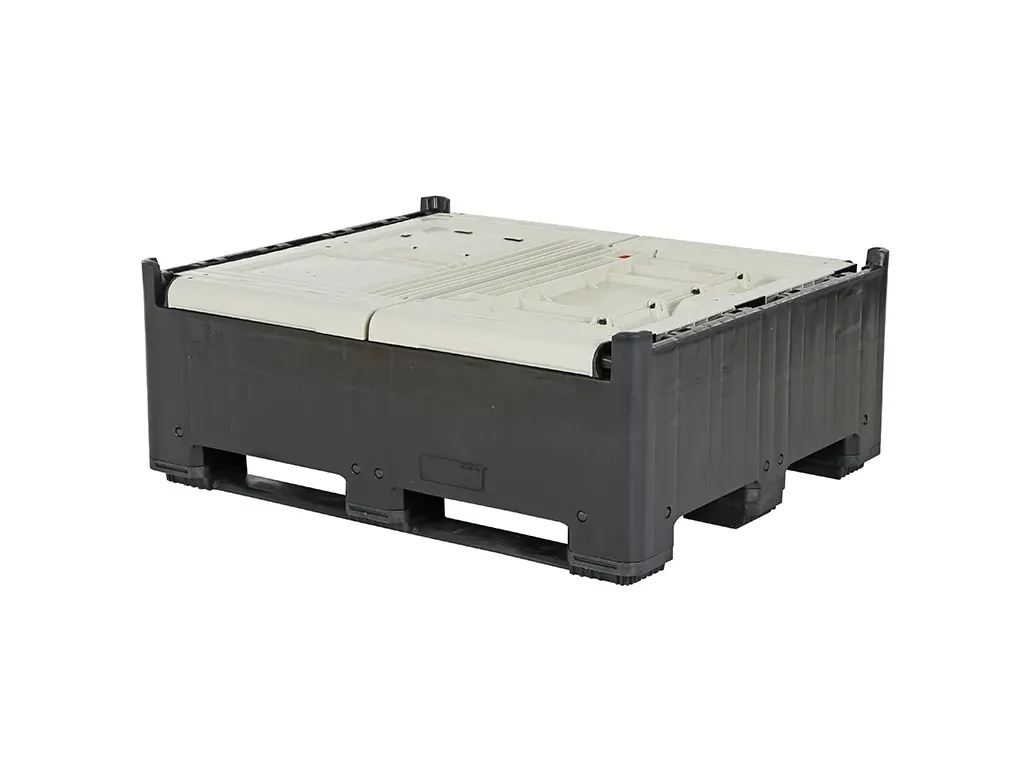

  • When folded, a volume reduction of more than 50% is achieved
  • Folded height: 470 mm - stacked height: 440 mm

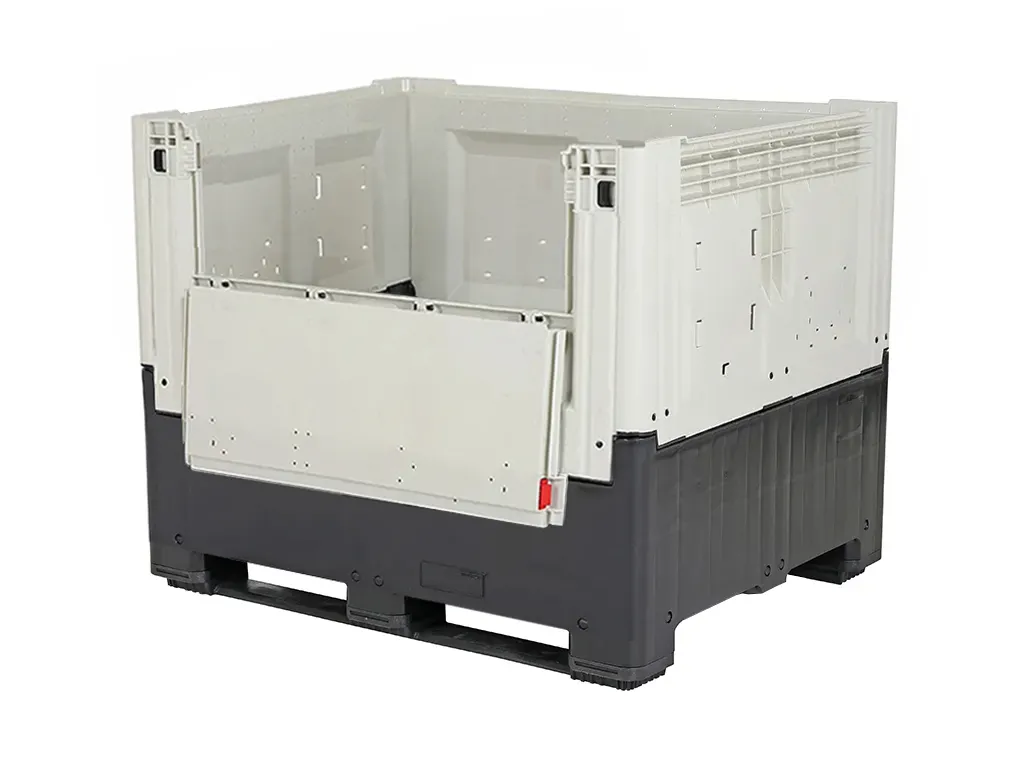

  • Equipped with a hinged drop door on one long side
  • Drop doors significantly reduce the lift-over height
  • Drop door opening (long side): 850 × H370 mm
  • Fitted all around with holders for label holders
  • Easy to repair in case of damage with separately available spare parts
  • At end of service life, the Smartbox is 100% recyclable
  • Options: lid - no drop doors - drop door short side - drop door long + short side - underside with 4 feet or 3 pallet runners - version with perforated walls
