UN-approved pallet box CB1 – 1200 × 800 mm – UN code 4H2/Y – red

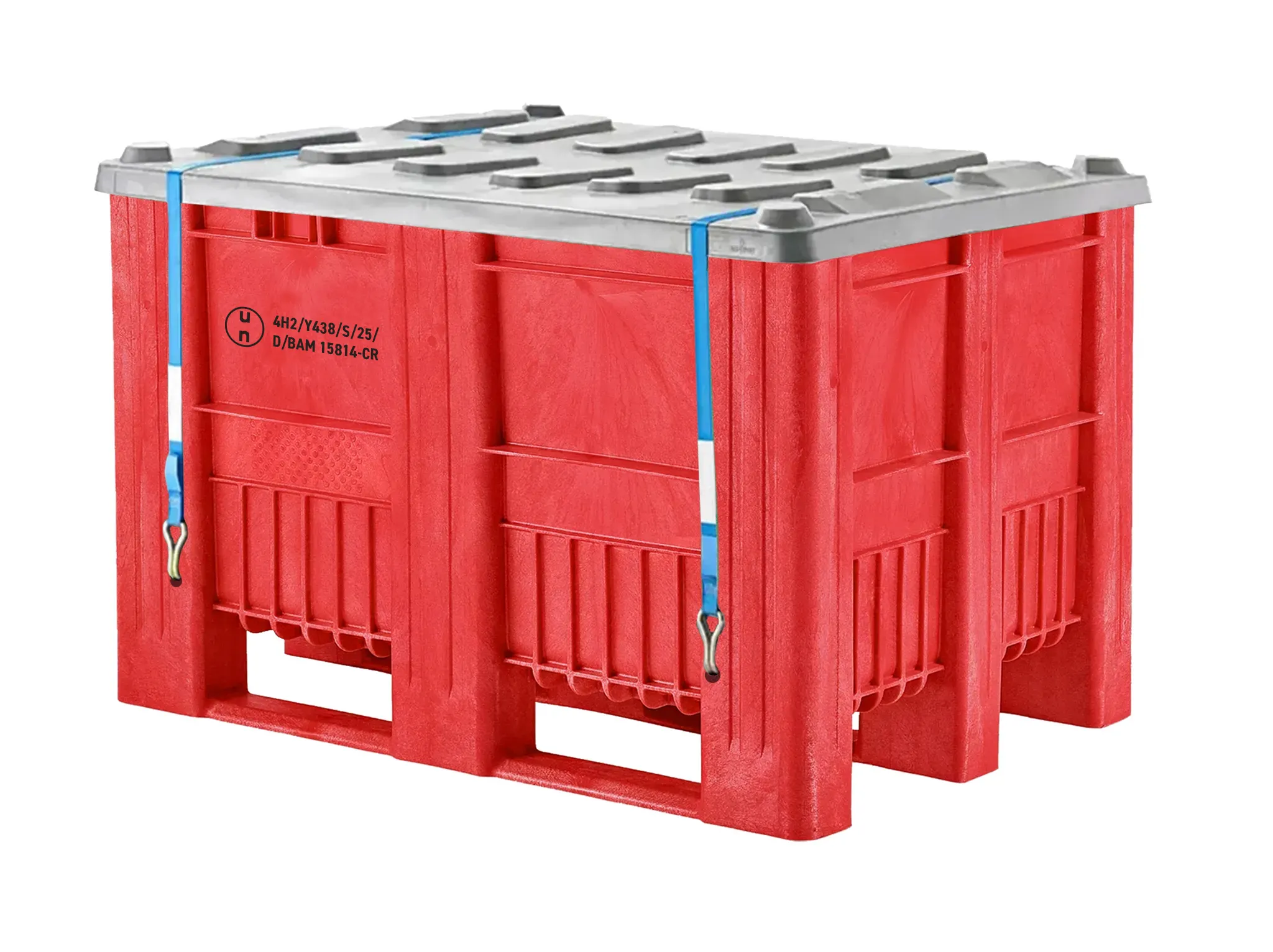

Red plastic pallet box type CB1 with lid (1236 × 836 × H766 mm incl. lid), UN-Y approved, on 3 pallet runners, lockable lid.

Full description
Bedrukking

Need printing?

Letters, numbers or logo

Configure

432,50 per piece(523,33 Incl. VAT)

Request a quote Order in webshop

Would you prefer personal advice?

Our product advisors are happy to help you.

Contact us

Product specifications

External dimensions ( L x W x H) 1236 × 836 × 766 mm
Internal dimensions (L x W x H) 1115 × 715 × 595 mm
Capacity 470 liter
Sidewalls Closed, reinforced
Material HDPE
Article number 83381919
Weight (kg) 39,5 kg
Temperature range -30°C to +40°C
Color Red
Bottom Closed, reinforced
European Article Number 7424920037046
Foodgrade Yes
Max. load capacity per box 438 kg
Max. static stacking load 1406 kg
Quantity per pallet 3

Description

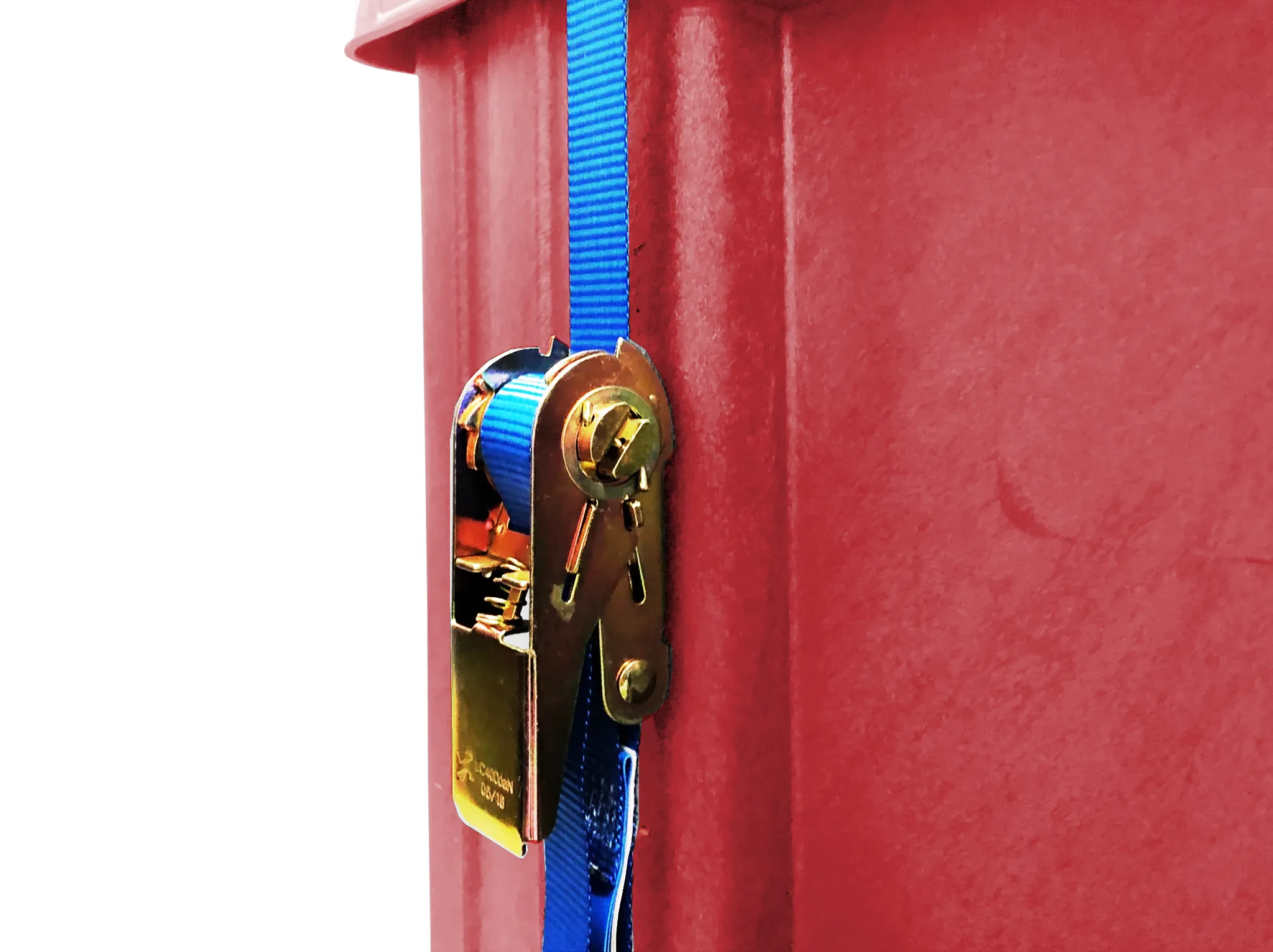

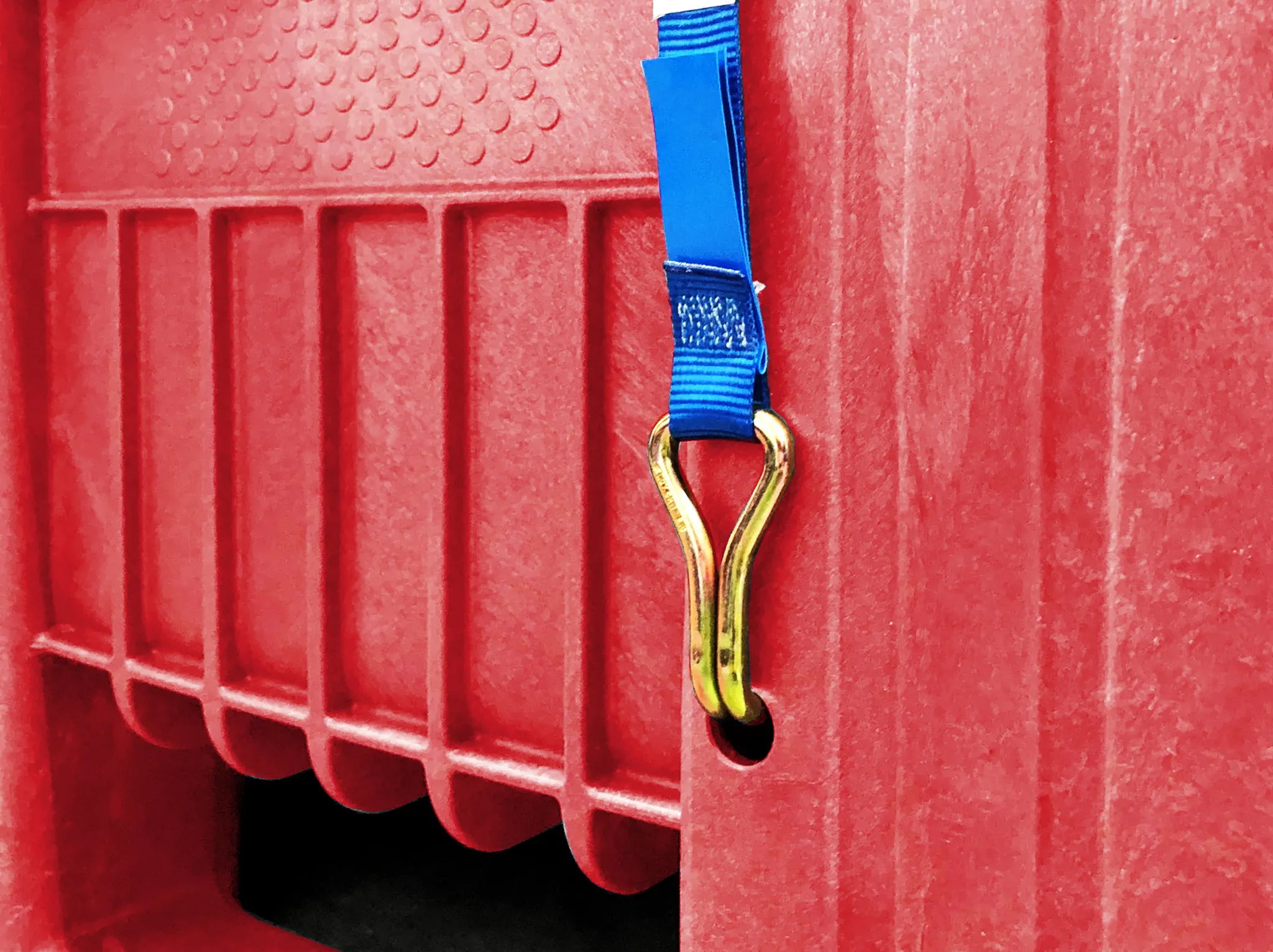

Red plastic pallet box (1200 × 800 × H 740 mm – 470 liter) type CB1 with a grey pallet lid. This impact-resistant plastic pallet box on three pallet runners is supplied with a matching fit-on lid and is secured using two tension straps. The CB1 box is produced in one piece by injection moulding, making it exceptionally robust. The lower wall panels are additionally reinforced with a heavy rib structure, acting as a buffer against impact damage from trucks or forklifts. This makes the CB1 an ideal pallet box for hazardous goods. The CB1 has UN approval for medium-dangerous goods (code Y) and is approved for the transport and storage of solid dangerous goods from packing groups II and III, including lithium batteries and rechargeable lithium battery packs (not critically defective). The box complies with the regulations laid down in ADR for road transport, as well as the requirements for transport of dangerous goods by rail (RID), by sea (IMDG Code) and by air (IATA-DGR).

Product datasheet

Download

Properties

  • Pallet box type CB1 (1200 × 800 × H740 mm) with fit-on lid and tension straps.
  • Dimensions incl. lid: 1236 × 836 × H766 mm.
  • The CB1 pallet box with lockable lid is certified with UN code 4H2/Y.
  • Certified as a UN box for medium-dangerous goods (code Y).
  • For transport and storage of solid dangerous goods in packing groups II and III.
  • Approved as UN overpack type 4H2 (rigid plastic box).
  • Load capacity: 438 kg.
  • Stacking load: max. 1406 kg.
  • With three pallet runners for maximum stability and load bearing capacity.
  • The runners are one-piece with the box - for a long service life.
  • Fitted all around with impact protection above the entry openings.
  • The inner walls are completely smooth and flat - easy to empty and easy to clean.
  • Made from virgin PE and highly chemical-resistant.
  • Stable stacking thanks to integrated stacking lugs on the corners.
  • Very robust one-piece pallet box that reliably protects your hazardous goods.
  • Options: RFID transponders - QR code and barcode - printing - available in various colours.
