4171.004.662

VDA RL-KLT Stacking bin (4147) – 396 x 297 x H 147 mm (smooth base)

Stacking container (396 x 297 x H 147 mm - 11.8 liters) in normal duty design. Closed construction with drainage holes in the bottom. The bottom is smooth.

Full description

9,50 per piece(11,50 Incl. VAT)

Request a quote

Would you prefer personal advice?

Our product advisors are happy to help you.

Contact us

Product specifications

External dimensions ( L x W x H) 396 × 297 × 147 mm
Internal dimensions (L x W x H) 348 × 265 × 176 mm
Capacity 11.7 liter
Handles Closed
Sidewalls Closed
Material PP
Article number 4171.004.662
Weight (kg) 1,08 kg
Temperature range -30°C to +80°C
Color Blue

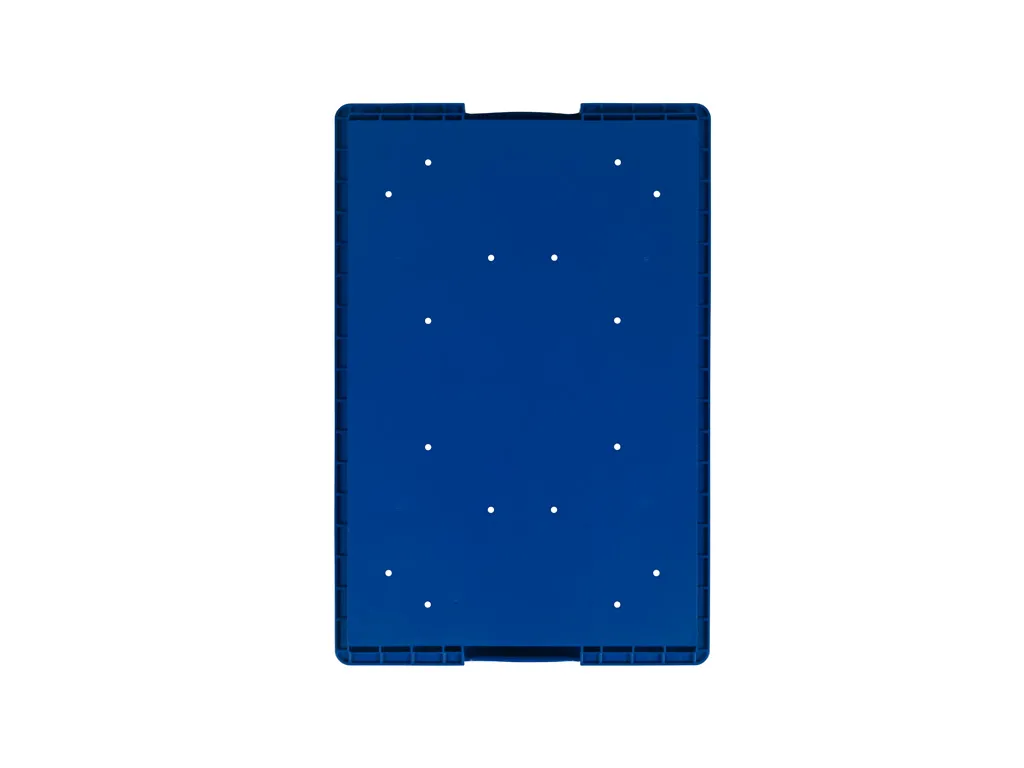

Bottom With drain holes, smooth
Foodgrade No
Max. load capacity per box 20 kg
Max. static stacking load 600 kg
Max. dynamic stacking load 300 kg

Description

The VDA RL-KLT stacking container (model 4147) is a practical and efficient container measuring 396 x 297 x H 147 mm with a smooth bottom. This stacking container is designed to meet diverse storage needs across various sectors. With its streamlined size and smooth bottom, this container is ideal for safely storing and transporting various smaller goods.

The dimensions of 396 x 297 x H 147 mm make this stacking container versatile for use across different sectors. The closed construction with drainage holes in the bottom ensures an efficient and secure storage environment. Additionally, this stacking container is equipped with receptacles for automated handling, enabling easy manipulation. It also features integrated label holders for clear content identification.

Thanks to its streamlined dimensions and smooth bottom, the VDA RL-KLT stacking container (4147) is a versatile choice for various sectors. It is commonly used in different industries, such as the automotive sector, where safe and efficient storage of smaller components is crucial.

Product datasheet

Download

Properties

  • VDA approved: Industry-standard stacking container for the European automotive industry.
  • Resistant to oils, acids, and alkalis.
  • Smooth base and walls for easy cleaning.
  • Optimized internal volume for efficient storage and transportation.
  • Reinforced base for compatibility with all types of conveyor systems.
  • Fire-safe design with drainage holes.
  • Ergonomic handles on the short sides for comfortable handling.
  • Inter-stackable: Fits alongside other RL-KLT models.
  • Fully recyclable for sustainability.

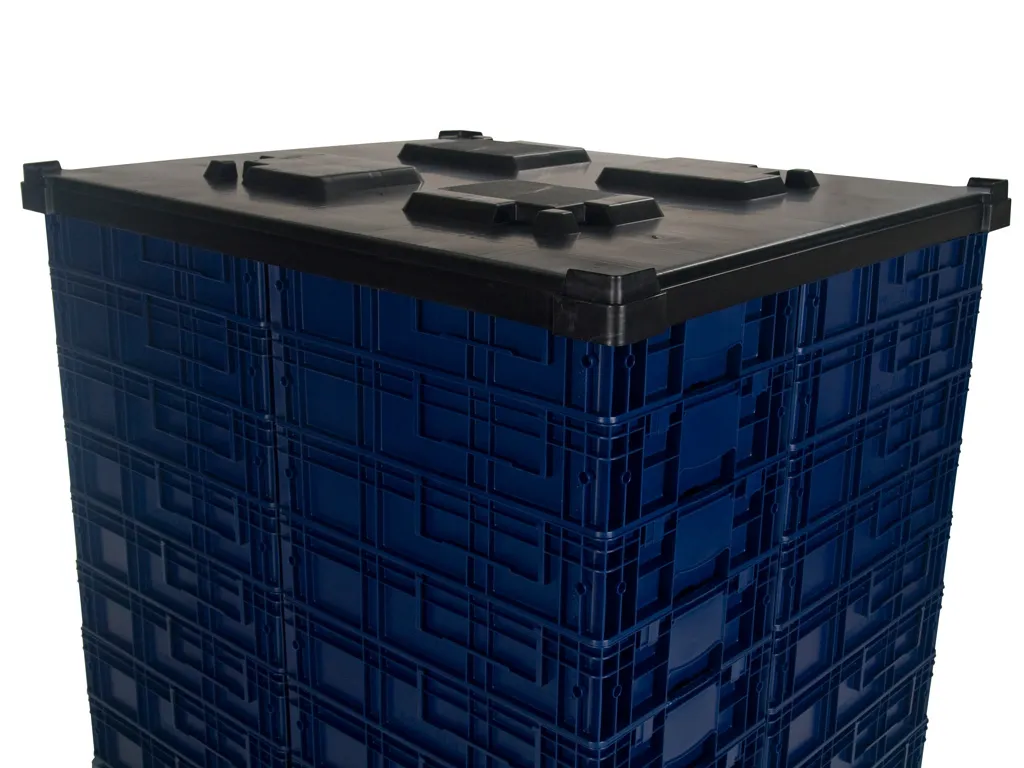

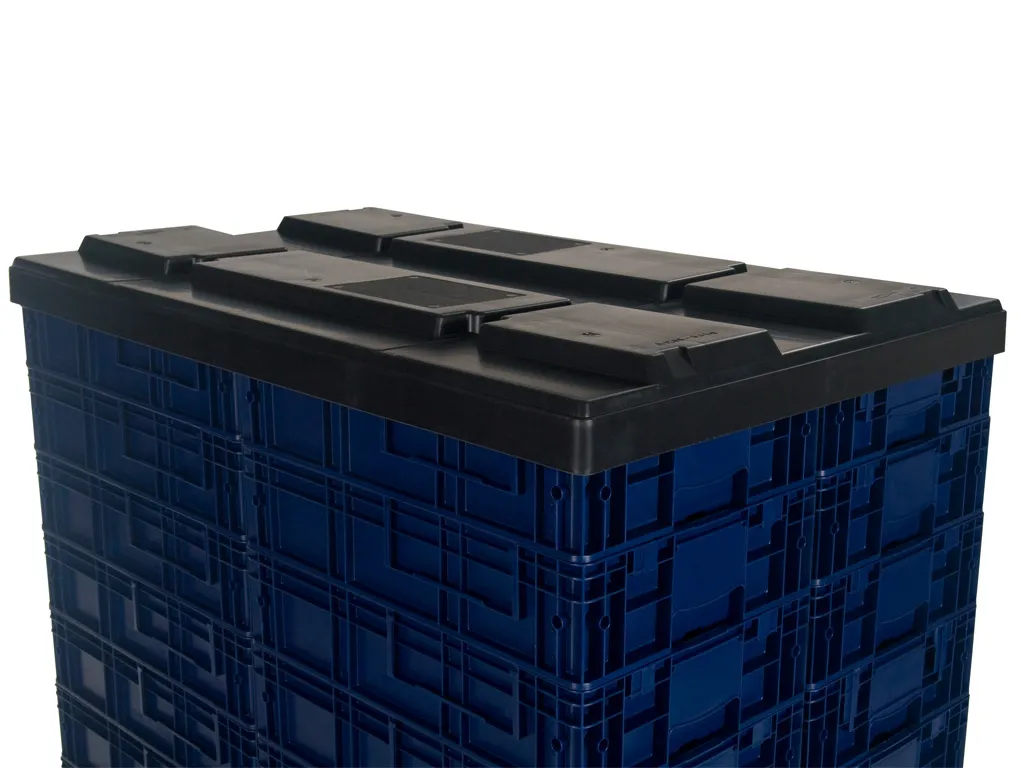

  • Optional lid available for extra protection against dust and contaminants.
  • External dimensions: 396 mm x 297 mm x 147.5 mm.
  • Net weight: 1.08 kg.
  • Usable volume: 11.7 liters.
  • Maximum static load: 600 kg.
  • Maximum dynamic load: 300 kg.
  • Made from polypropylene (PP).
  • Temperature range: -10 °C to 50 °C.
