4151.760.661

VDA R-KLT Stacking bin (4315) – 396 x 297 x H 147 mm (reinforced base)

The VDA R-KLT 4315 400x300x147 is part of the R-KLT VDA series, designed for automated handling in the automotive industry. This container offers many advantages over the standard KLT, such as high dimensional stability and robustness. The single-wall construction results in a low tare weight and increased effective volume. The container has smooth inner surfaces for easy cleaning, and the composite base allows for efficient stacking. Ergonomic handles are provided on the front side for easy handling. Additionally, the container is resistant to oils, acids, and alkalis.

Full description

€9,50 per piece(€11,50 Incl. VAT)

Request a quote

Would you prefer personal advice?

Our product advisors are happy to help you.

Contact us

Product specifications

External dimensions ( L x W x H) 396 × 297 × 147 mm
Internal dimensions (L x W x H) 346 × 265 × 110 mm
Capacity 10 liter
Handles Closed
Sidewalls Closed
Material PP
Article number 4151.760.661
Weight (kg) 1,29 kg
Temperature range -30°C to +80°C
Color Blue
Bottom Closed, extra reinforced
Foodgrade No
Max. load capacity per box 20 kg
Max. static stacking load 600 kg
Max. dynamic stacking load 300 kg

Description

Stacking crate (396 x 297 x H 147 mm - 10.1 liters) in heavy-duty design. Completely closed without bottom perforations. The bottom is partially reinforced for extra strength. The VDA R-KLT crate is equipped with fixtures for automated handling and features integrated label holders. The stacking crate is commonly used in the automotive industry for heavier components.

Product datasheet

Download

Properties

  • Integrated label holders on all four sides for easy identification.
  • Smooth bottom with drain holes for easy cleaning.
  • Resistant to oils, acids, and alkalis.

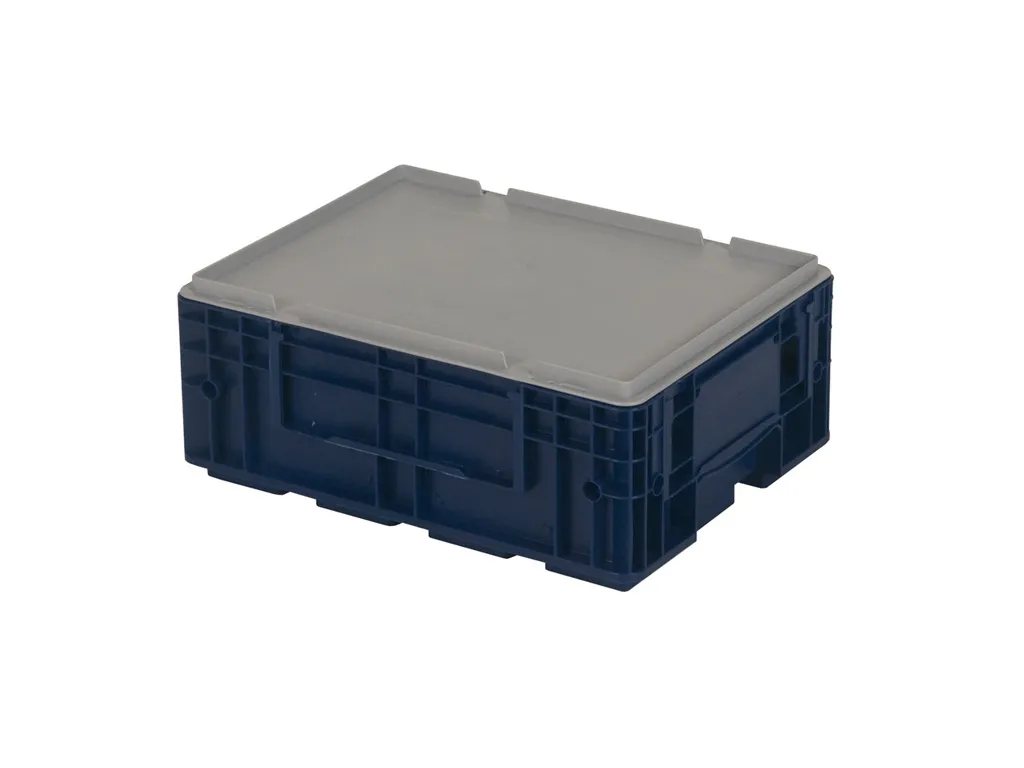

  • Optional lid available for additional product protection.
  • VDA standardized for use in the automotive and supplier industry.
  • Designed for automated handling.
  • High dimensional stability and robustness.

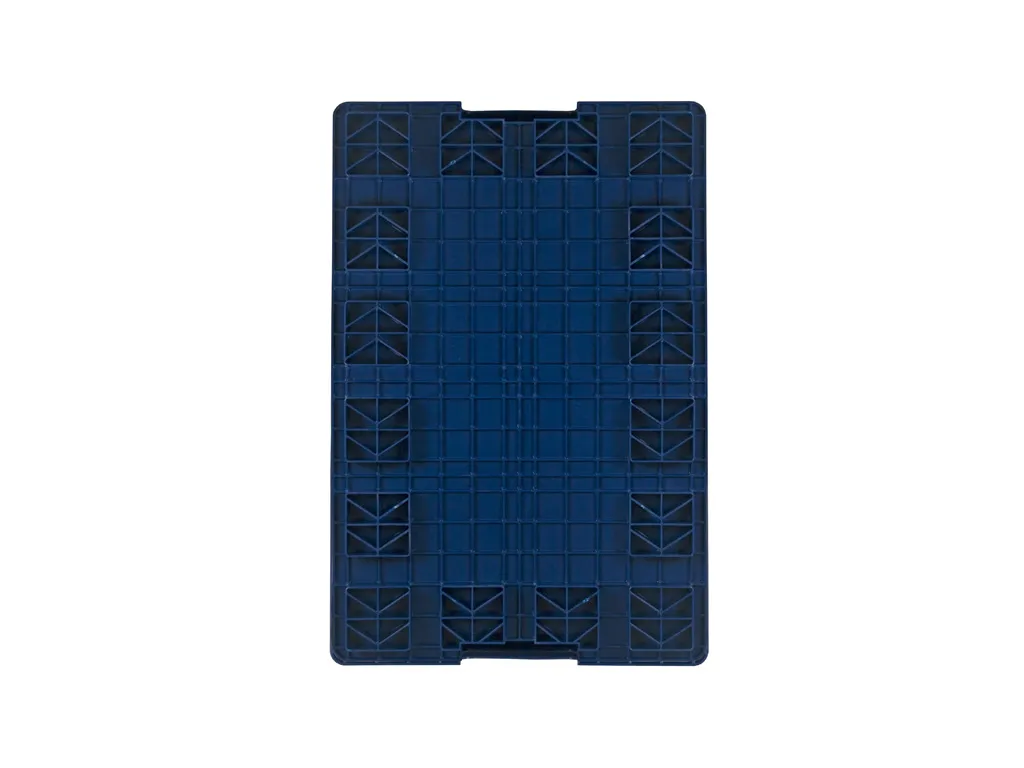

  • Composite stacking base for efficient stacking.
  • Smooth inner surfaces make the container easy to clean.
  • Low tare weight for increased effective volume.
  • Ergonomic handles for easy handling.
  • Reinforced outer walls to prevent deformation under heavy loads.
  • External dimensions: 396 mm x 297 mm x 147.5 mm.
  • Usable volume: 10 liters.
  • Made from polypropylene (PP).
  • Temperature range: -10 °C to 50 °C.

Matching accessories

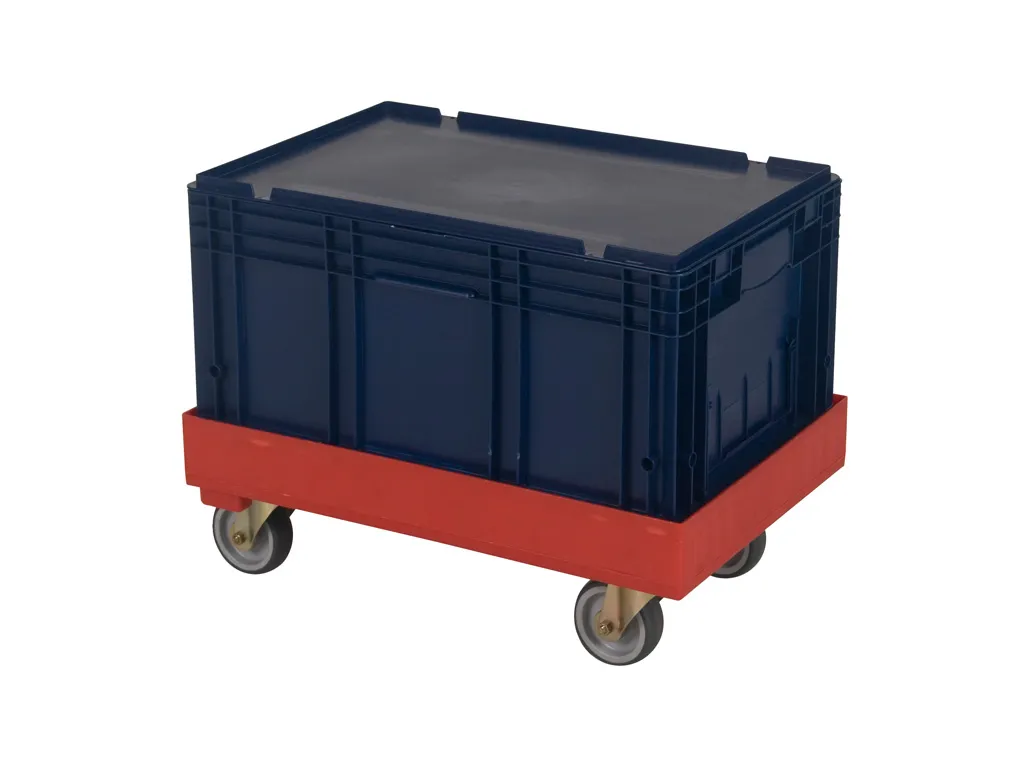

Plastic trolley - universal - PP swivel castors

Wheeled plastic trolley with four Ø 100 mm PP swivel castors and galvanised housings. Suitable for both stacking bins and stacking nestable bins 600 x 400 mm or two off 400 x 300 mm.
View

Plastic trolley - universal - rubber swivel castors

Wheeled plastic trolley with four Ø 100 mm swivel castors with non-marking rubber tread and galvanized housings. Suitable for both stacking bins and stacking nestable bins 600 x 400 mm or two off 400 x 300 mm.
View
